Quartz Spiral Tubes
- Product Item : HYRD-A004
- Category： Quartz Tubes
- Material: Milky Quartz Glass
- Color: Milky White
- Dimension: Customized
- MOQ: No limited

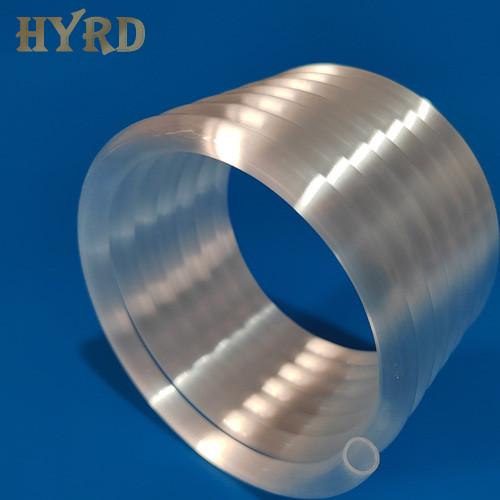

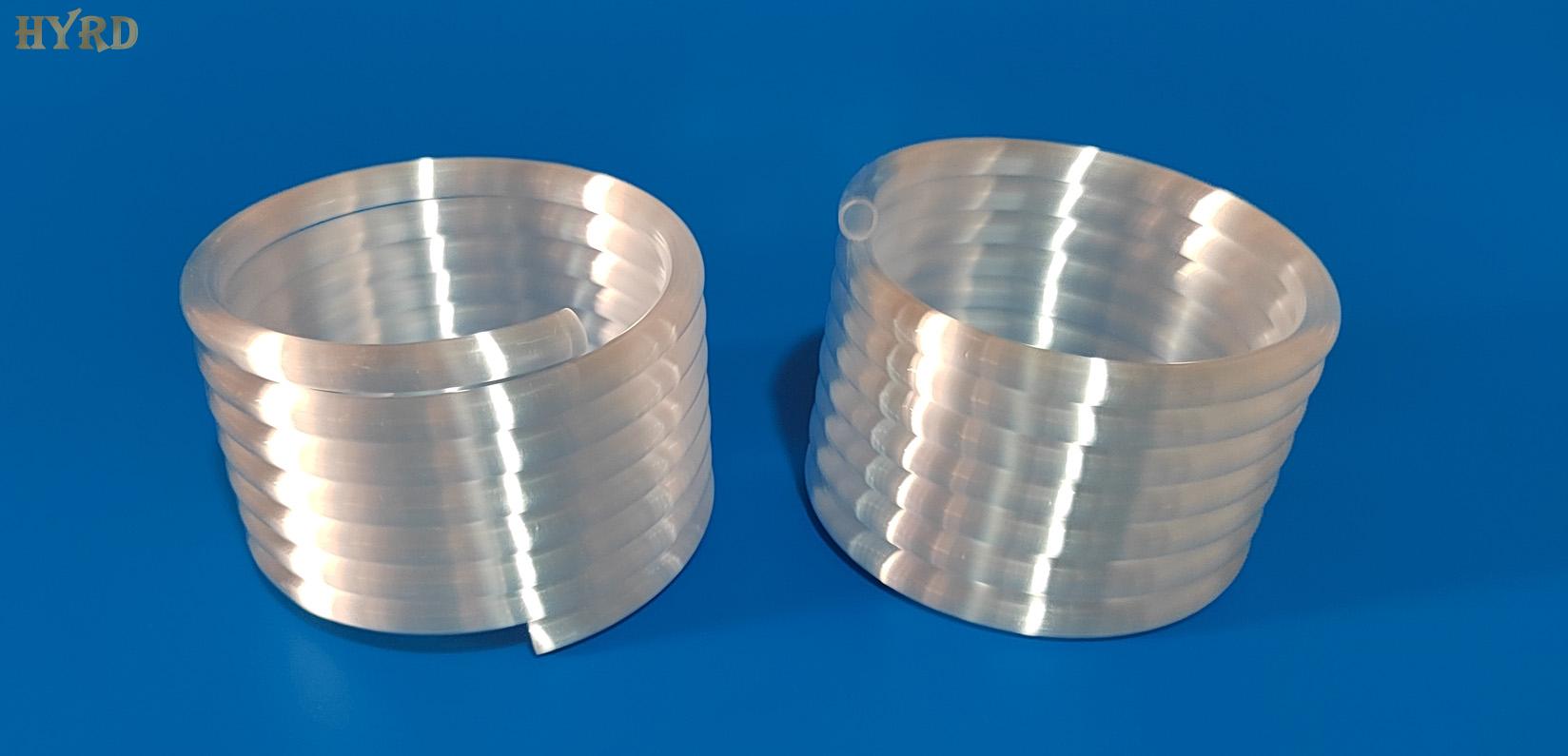

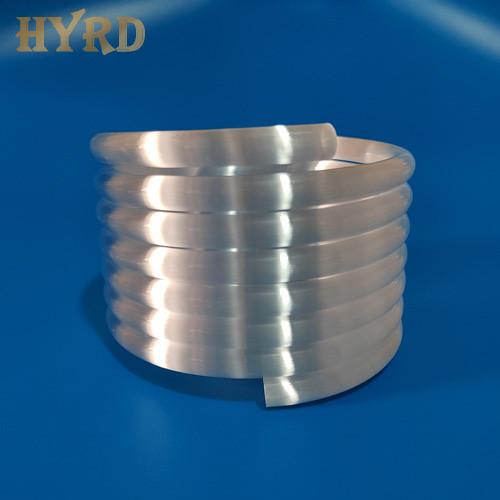

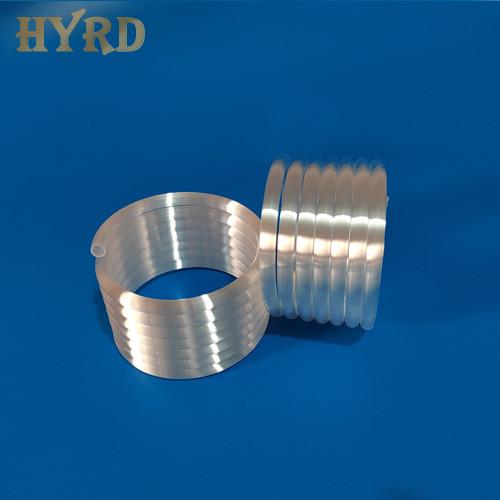

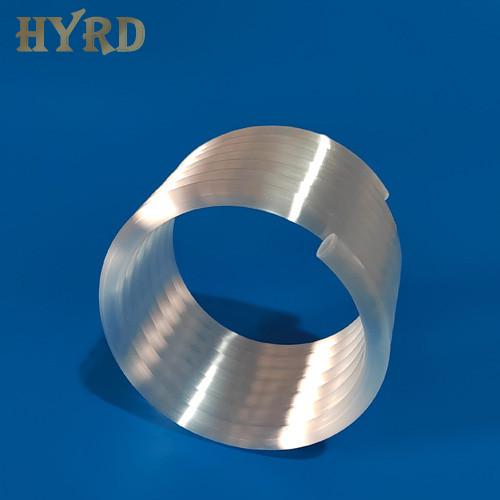

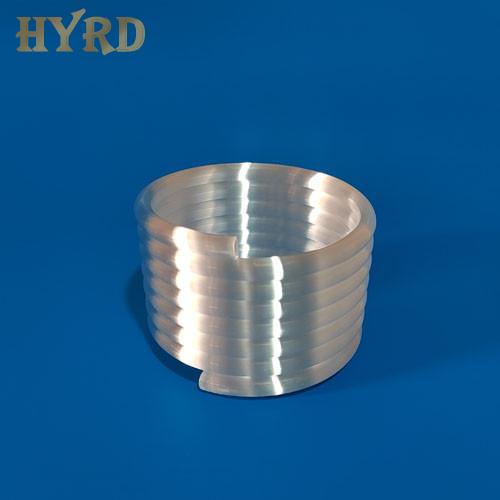

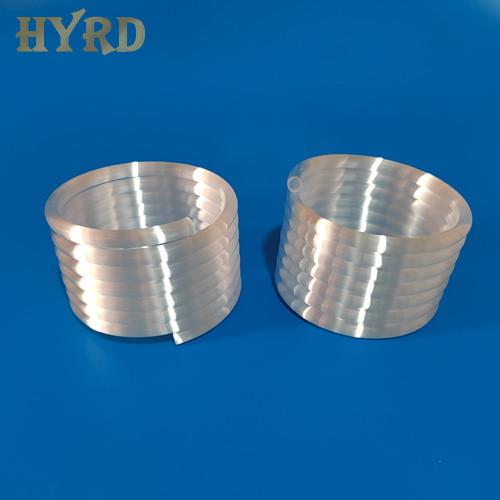

Quartz Spiral Tubes
For quartz spiral tubes, we can do transparent or milky quartz glass tubes. Dimension can be customized by customer.
The quartz tubes are thermally processed by machine, accurately bent and bent to achieve a regular spiral shape. The dimension is in good control, high precision, product is fully meet customer use requirements.
Specifications
Outer diameter of the quartz spiral tube: 120mm
Inner diameter of the quartz spiral tube: 100mm
Height of the quartz spiral tube: 85mm
Number of coils: 7 coils
2. Corrosion resistance. Except for hydrofluoric acid, quartz glass hardly reacts with other acids. Its acid resistance is 30 times that of ceramics and 150 times that of stainless steel. Especially the chemical stability at high temperature is unmatched by any other engineering material.
3. Good light transmission performance. Quartz glass has good transmittance in the entire spectrum from ultraviolet to infrared, and the transmittance of visible light is above 93%, especially in the ultraviolet spectrum, the maximum transmittance can reach more than 80.
4. Good thermal stability. Quartz glass has a small thermal expansion coefficient and can withstand severe temperature changes. When the quartz glass is heated to about 1100 ℃, it will not burst when placed in normal temperature water.
5. Quartz glass has good electrical insulation properties. The resistance value of quartz glass is equivalent to 10,000 times that of ordinary glass. It is an excellent electrical insulating material with good electrical properties even at room temperature.
Because quartz glass has many of the above advantages, it is an indispensable excellent material in space technology, atomic energy industry, national defense equipment, automation system, semiconductor, metallurgy, chemical industry, electric light source, communication, light industry, building materials and other industries in modern cutting-edge technology.
Package
As our product is glass parts, which is fragile during transportation. We carefully do packing for each part. Optical paper, plastic foam, pearl cotton, plastic box etc, we try to protect parts by all means.
Logistics
For logistics, we support shipping by sea, air, or express. We help customer choose economic, safe and fast shipping method, which is suitable for customer requirements.
About us
Beijing HYRD Photonics Co., Ltd established in year 2011. Our products mainly include quartz glass products, optical glass components, optical coating etc.
Quartz Glass Products Series:
Quartz tubes, quartz rods, quartz discs and substrates, CNC machined quartz glass parts, quartz glass instruments, quartz carriers, quartz rings, quartz cuvettes, quartz flow tubes, custom quartz parts, optical quartz glass components, etc.
We can produce according to customer’s requirement. With 11 years of professional glass processing experience, we have mastered various glass processing methods: glass punching, glass drilling, glass lapping, glass polishing, CNC glass machining etc.
Not only manufacturing according to drawings from customer, we can do design and development in glass material product as well. Electronics, semiconductors, lasers, optical communications, advanced materials....We are behind all kinds of technology and industry that benefit the quartz and optical glass part and serve your idea, design and products.
Quality Guarantee
Honesty and trust are the foundation of the business. We achieve customer satisfaction with high-quality products and services through excellent production and continuous improvement!
For quartz spiral tubes, we can do transparent or milky quartz glass tubes. Dimension can be customized by customer.
The quartz tubes are thermally processed by machine, accurately bent and bent to achieve a regular spiral shape. The dimension is in good control, high precision, product is fully meet customer use requirements.
Specifications
Outer diameter of the quartz spiral tube: 120mm
Inner diameter of the quartz spiral tube: 100mm
Height of the quartz spiral tube: 85mm
Number of coils: 7 coils
Properties of Quartz Glass
1. High temperature resistance. The softening point temperature of quartz glass is about 1730°C, it can be used for a long time at 1100℃, and the higher temperature can reach 1450℃ in a short time.2. Corrosion resistance. Except for hydrofluoric acid, quartz glass hardly reacts with other acids. Its acid resistance is 30 times that of ceramics and 150 times that of stainless steel. Especially the chemical stability at high temperature is unmatched by any other engineering material.
3. Good light transmission performance. Quartz glass has good transmittance in the entire spectrum from ultraviolet to infrared, and the transmittance of visible light is above 93%, especially in the ultraviolet spectrum, the maximum transmittance can reach more than 80.
4. Good thermal stability. Quartz glass has a small thermal expansion coefficient and can withstand severe temperature changes. When the quartz glass is heated to about 1100 ℃, it will not burst when placed in normal temperature water.
5. Quartz glass has good electrical insulation properties. The resistance value of quartz glass is equivalent to 10,000 times that of ordinary glass. It is an excellent electrical insulating material with good electrical properties even at room temperature.
Because quartz glass has many of the above advantages, it is an indispensable excellent material in space technology, atomic energy industry, national defense equipment, automation system, semiconductor, metallurgy, chemical industry, electric light source, communication, light industry, building materials and other industries in modern cutting-edge technology.
Package
As our product is glass parts, which is fragile during transportation. We carefully do packing for each part. Optical paper, plastic foam, pearl cotton, plastic box etc, we try to protect parts by all means.
Logistics
For logistics, we support shipping by sea, air, or express. We help customer choose economic, safe and fast shipping method, which is suitable for customer requirements.
About us
Beijing HYRD Photonics Co., Ltd established in year 2011. Our products mainly include quartz glass products, optical glass components, optical coating etc.
Quartz Glass Products Series:
Quartz tubes, quartz rods, quartz discs and substrates, CNC machined quartz glass parts, quartz glass instruments, quartz carriers, quartz rings, quartz cuvettes, quartz flow tubes, custom quartz parts, optical quartz glass components, etc.
We can produce according to customer’s requirement. With 11 years of professional glass processing experience, we have mastered various glass processing methods: glass punching, glass drilling, glass lapping, glass polishing, CNC glass machining etc.
Not only manufacturing according to drawings from customer, we can do design and development in glass material product as well. Electronics, semiconductors, lasers, optical communications, advanced materials....We are behind all kinds of technology and industry that benefit the quartz and optical glass part and serve your idea, design and products.
Quality Guarantee
Honesty and trust are the foundation of the business. We achieve customer satisfaction with high-quality products and services through excellent production and continuous improvement!
