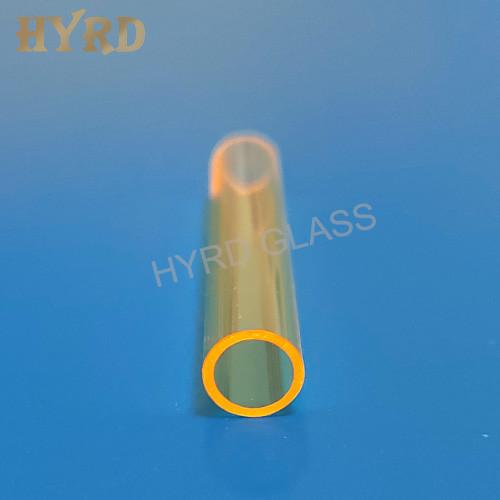

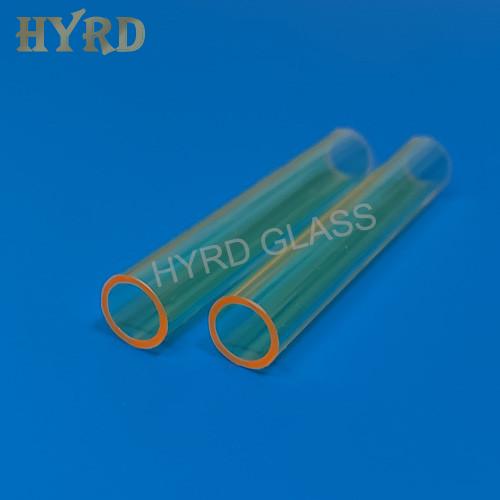

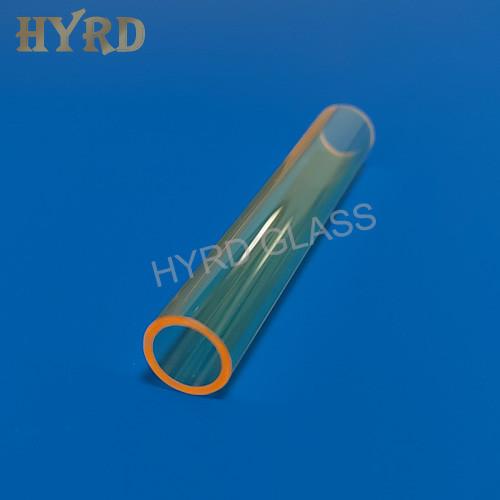

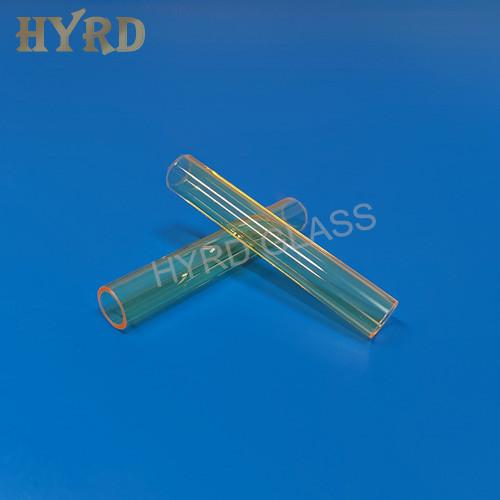

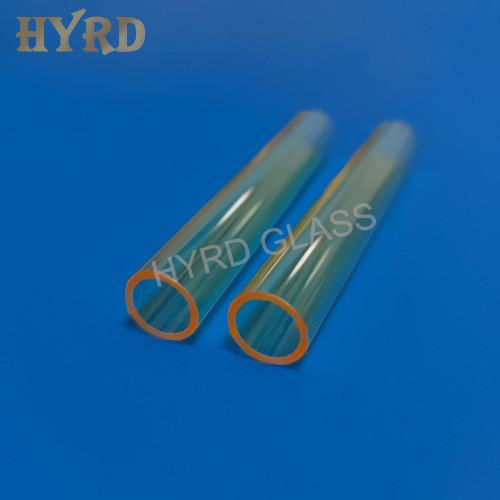

UV Filter Flow Tubes Used in IPL
- Product Item : HYRD-B012
- Category： Quartz Flow tubes
- Material : Heat resisting UV filter quartz tube
- Light transmittance VLT(%) : 89% ( from 380nm )
- Surface: Transparent
- Mininum order quantity: Five pieces
UV Filter Flow Tubes Used in IPL
Material : Heat resisting UV filter quartz tube
Light transmittance VLT(%) : 89% ( from 380nm )
UV Filter Flow Tube is an important part for the hand piece. It has high transmittance that can improve the lamp's output power. And the same time it must be high temperature resistant , and little Heat Shrinkage , etc..
Common specifications:
φ 10*76 φ 10*80 φ 12*60 φ 12*63 φ 12*65 φ 12*72 φ 12*73 φ 12*75 φ 12*76 φ 12*78 φ 12*82 φ 12*88 φ 12*90 φ 13*60 φ 13*63 φ 13*65 φ 13*72 φ 13*76 φ 13*79 φ 13*80 φ 13*82 φ 13*85 φ 13*90
Key Features
Highest resistance to intense light pulses
Very low bubble content
Almost blemish free surface
Wide range of geometries
Applications
Laser excitation lamp
IPL (intense pulsed lamp)
Material : Heat resisting UV filter quartz tube
Light transmittance VLT(%) : 89% ( from 380nm )
UV Filter Flow Tube is an important part for the hand piece. It has high transmittance that can improve the lamp's output power. And the same time it must be high temperature resistant , and little Heat Shrinkage , etc..
Common specifications:
φ 10*76 φ 10*80 φ 12*60 φ 12*63 φ 12*65 φ 12*72 φ 12*73 φ 12*75 φ 12*76 φ 12*78 φ 12*82 φ 12*88 φ 12*90 φ 13*60 φ 13*63 φ 13*65 φ 13*72 φ 13*76 φ 13*79 φ 13*80 φ 13*82 φ 13*85 φ 13*90
Key Features
Highest resistance to intense light pulses
Very low bubble content
Almost blemish free surface
Wide range of geometries
Applications
Laser excitation lamp
IPL (intense pulsed lamp)
