U-Grooved Glass Fiber Optic Substrates
- Product Item : HYRD-M014
- Category： Glass Capillaries
- Material: Fused quartz
- Purity: 99.99%
- Diameter: 1.0/1.1/1.2/1.3/1.4/1.5/1.6/1.7/1.8/1.9/2.0mm....
- Application: fiber support or alignment, or isolating fiber with the package
U-Grooved Glass Fiber Optic Substrates

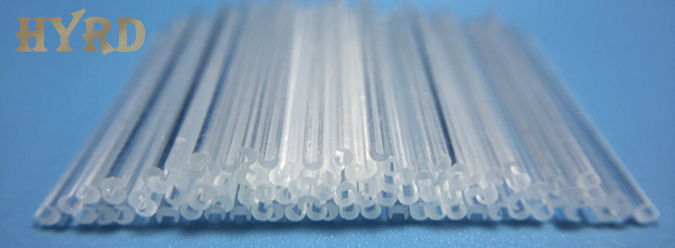

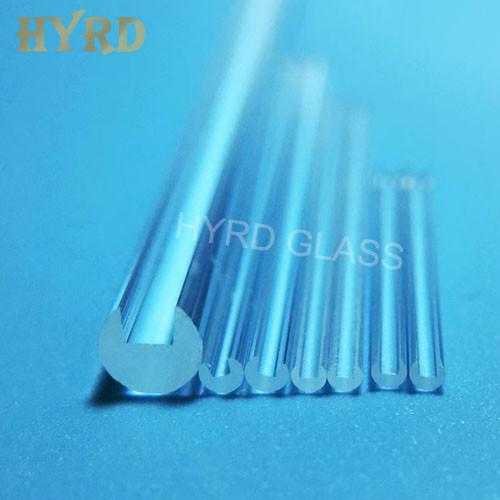

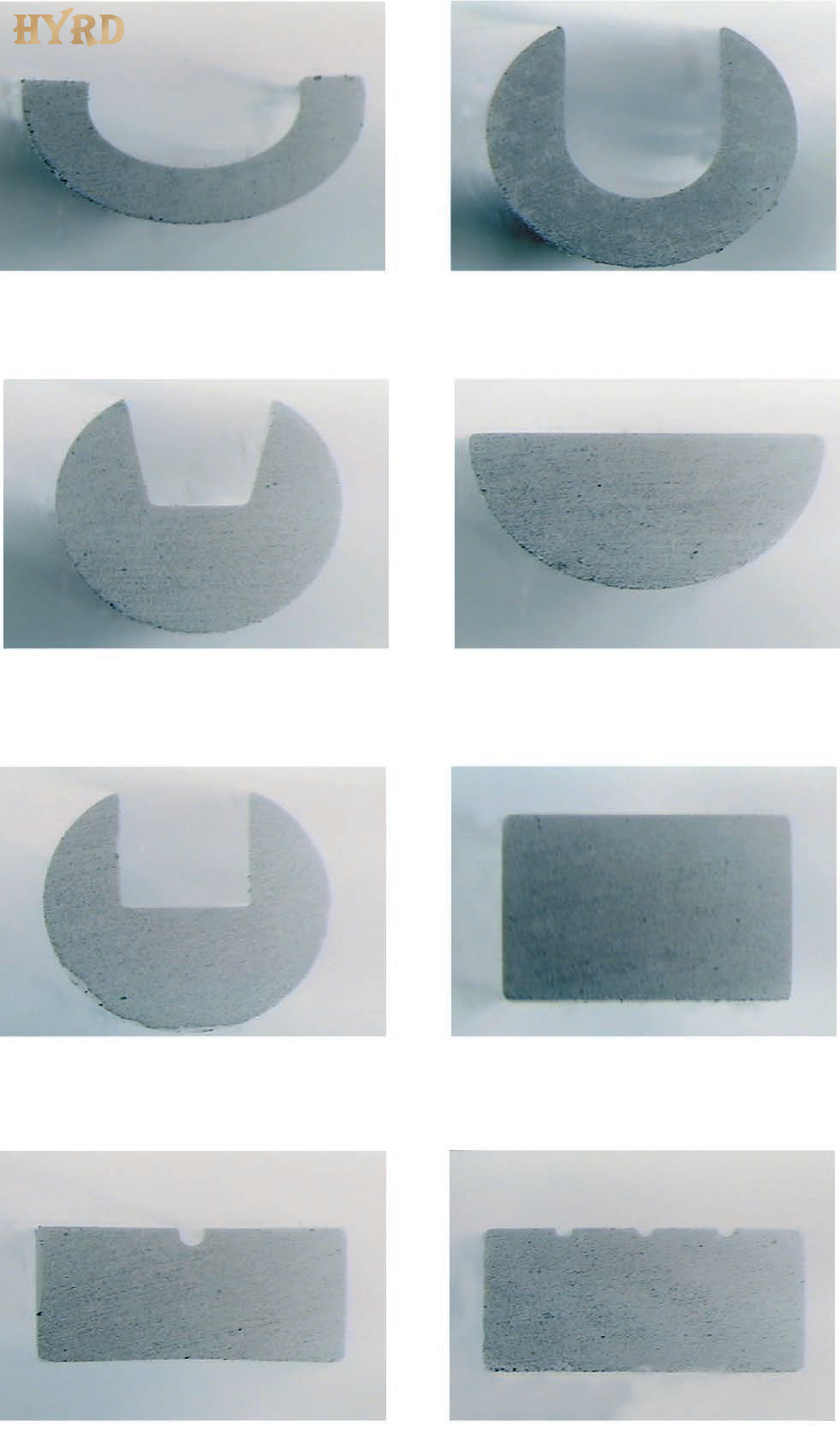

U Grooved Quartz Glass Substrates are used for fiber optic couplers. It is made from high purity silica glass, thermal drawn by glass drawing tower, and cut with specified length. We custom produce various dimensions of U Grooved Quartz Glass Substrates and V Grooved Quartz Glass Substrates according to customer’s specific requirement. Many dimensions of U Grooved Quartz Glass Substrates are in stock for immediate shipment.
Product Parameter
Product Name
U Grooved Quartz Glass Substrates
Material
Silica glass
Silicon Content
99.99%
Diameter
1.0/1.1/1.2/1.3/1.4/1.5/1.6/1.7/1.8/1.9/2.0mm....
Tolerance of the diameter
±0.03mm
Angle of the opening
15-38°
Tolerance of the angle
±5°
Length
5-100mm
Tolerance of the length
±0.2mm
Surface
Transparent or frost
Application
Fiber optic couplers
Stock
Available

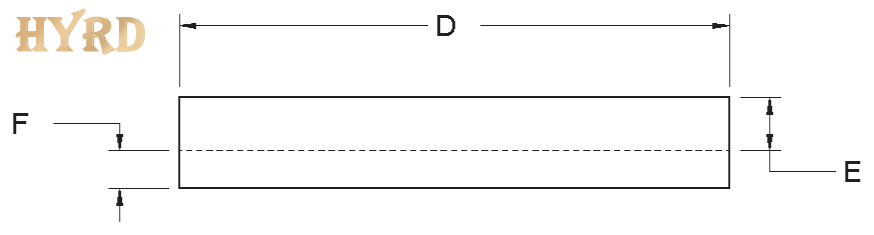

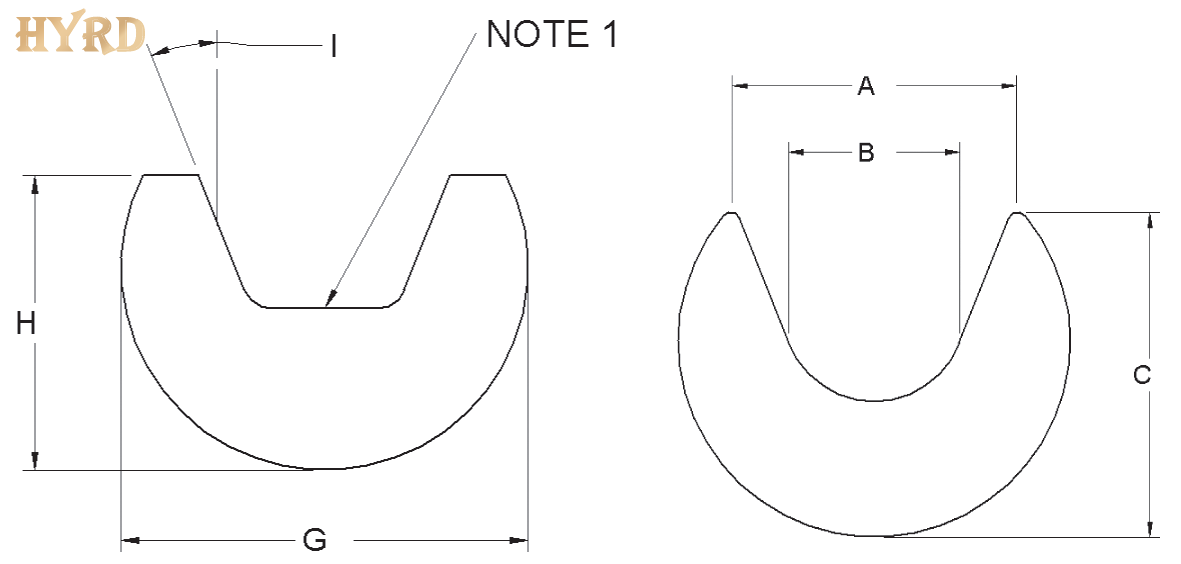

Drawings
A=Maximum Width of Groove ± Tolerance
B=Minimum Width of Groove ± Tolerance
C=Overall Diameter ± Tolerance
D=Length of Piece ± Tolerance
E=Depth of Groove ±Tolerance
F=Distance between Bottom of Groove
G=Major Axis of Outer Piece ± Tolerance
H=Minor Axis of Outer Piece ± Tolerance
I=Angle Specifications (max./min)
NOTE 1:Specify shape requirements such as full radiused, parallel sides, right angle sides, tapered, etc.
Also include:
- Glass Type
- Concentricity Specifications
- Ground and/or Polished Surfaces
