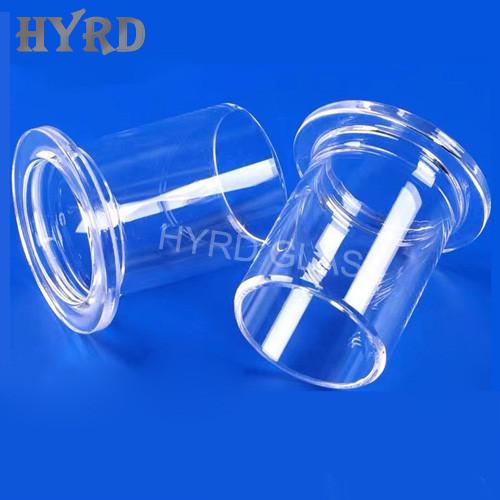

Fused Quartz Glass Tubes With Flanges

  • Product Item : HYRD-A022
  • Category: Quartz Tubes
  • Material: High purity quartz glass
  • Purity: 99.99%
  • Surface: Polished /Transparent
  • Minimum Order Quantity: Negotiable
  • INQUIRY   EMAIL

Fused Quartz Glass Tubes With Flanges

Quartz tubes can be welded together to tightly connect flanges. After annealing treatment, the strength of quartz glass is increased. Our quartz glass tubes with flanges have high dimensional accuracy and can be assembled well with other parts. High temperature resistance, corrosion resistance, and excellent product performance.

Mechanical Properties

Material
Quartz Glass
Density
2.203g/cm3
Compressive Strength
1100Mpa
Bending Strength
67Mpa
Tensile Strength
48.3Mpa
Poisson's Ratio
0.14~0.17
Young’s Modulus
72000Mpa
Rigidity Modulus
31000Mpa
Mohs Hardness
5.5~6.5

Thermal Properties

Deformation Point
1280℃
Softening Point
1680℃
Annealing Point
1210℃
Specific Heat (20~350℃)
670J/kg.℃
Thermal Conductivity (20℃)
1.4W/m.℃
Coefficient of thermal expansion
5.5×10-7cm/cm.℃
Hot Work Temperature
1700~2000℃
Short-term Use Temperature
1300℃
Long-term Use Temperature

1100℃


Electrical Properties

Resistivity
7×107Ω.cm
Dielectric Strength
250~400Kv/cm
Dielectric Constant ε
3.7~3.9
Dielectric absorption coefficient
<4×104
Dielectric loss coefficient

<1×104

Package

As our product is glass parts, which is fragile during transportation. We carefully do packing for each part. Optical paper, plastic foam, pearl cotton, plastic box etc, we try to protect parts by all means.

Logistics

For logistics, we support shipping by sea, air, or express. We help customer choose economic, safe and fast shipping method, which is suitable for customer requirements.
