Quartz Capillary Tubes for Fiber Optic Ferrules
- Product Item : HYRD-M021
- Category： Glass Capillaries
- Material: Quartz glass
- Silicon content: 99.99%
- ID: 0.125mm, 0.126mm, 0.127mm
- Application: Optical Fiber Packaging

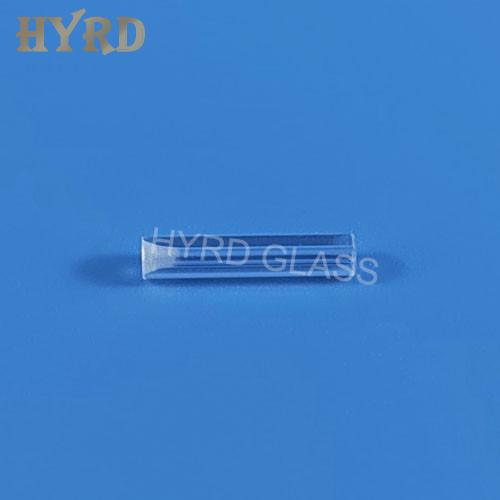

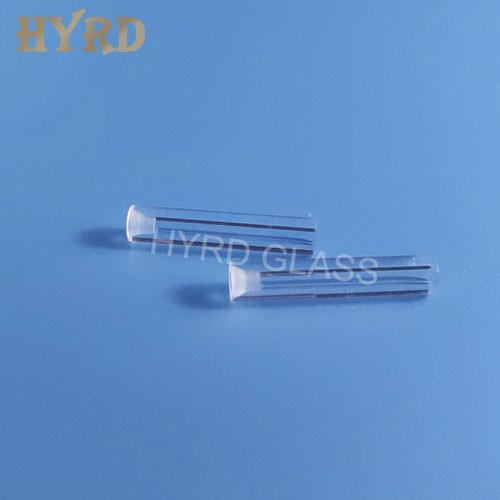

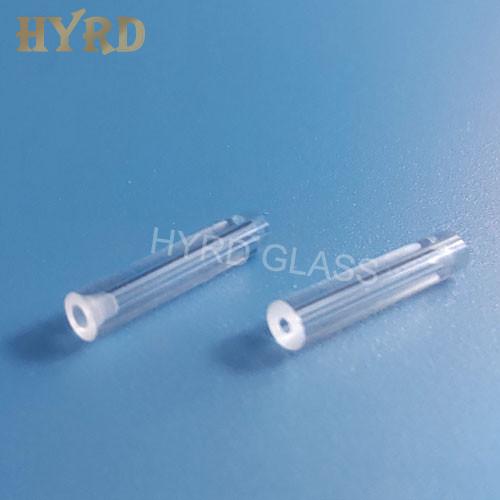

Quartz Capillary Tubes for Fiber Optic Ferrules
The quartz capillary tubes used for fiber optic ferrules usually have inner diameter of 0.125mm, 0.126mm or 0.127mm, which has a tolerance of 0.003mm. One end face of an optical-fiber-fixed capillary is ground into a convex-sphere and the other end face is ground (or polished) into an inclined surface, the capillary comes to work as an optical fiber stub.

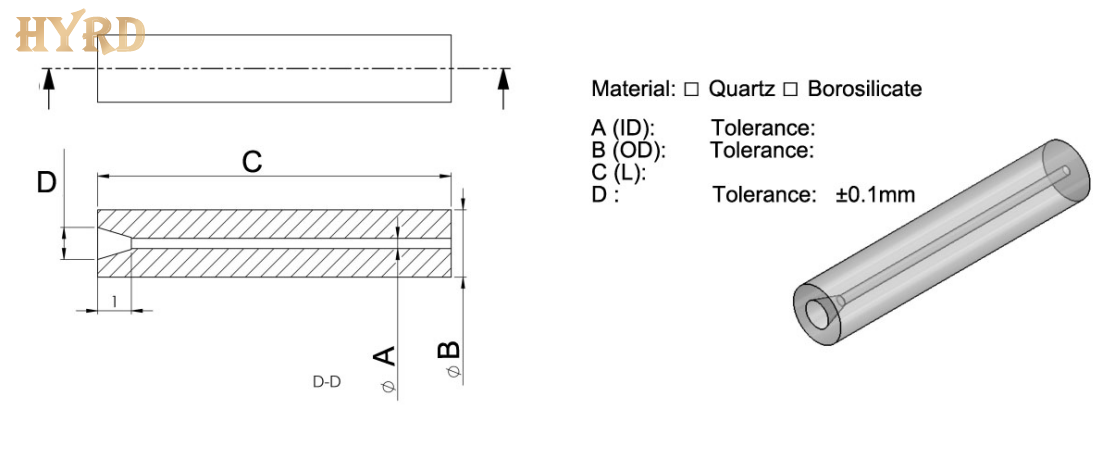

Product Specification
Material
Quartz glass
Silicon content
99.99%
OD (mm)
0.1-5mm
ID
0.125mm, 0.126mm, 0.127mm
Tolerance
±0.01mm or as required
Length
5-30mm
Surface
Smooth
Color
Transparent
Taper inlet
Optional
Process
Thermal drawn
Application
Optical Fiber Packaging
