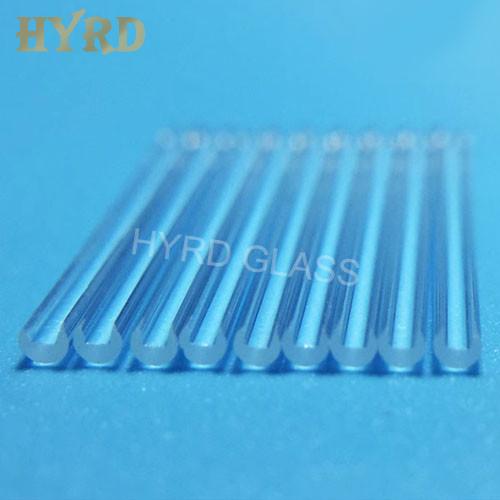

U Grooved Quartz Glass Substrates for Fiber Optic Couplers
- Product Item : HYRD-M013
- Category： Glass Capillaries
- Material: Silica glass
- Silicon Content: 99.99%
- Diameter: 1.0/1.1/1.2/1.3/1.4/1.5/1.6/1.7/1.8/1.9/2.0mm....
- Angle of the opening: 15-38°

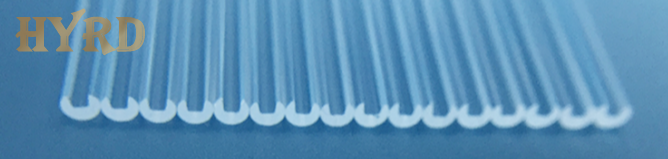

U Grooved Quartz Glass Substrates for Fiber Optic Couplers
U Grooved Quartz Glass Substrates are used for fiber optic couplers. It is made from high purity silica glass, thermal drawn by glass drawing tower, and cut with specified length. We custom produce various dimensions of U Grooved Quartz Glass Substrates and V Grooved Quartz Glass Substrates according to customer’s specific requirement. Many dimensions of U Grooved Quartz Glass Substrates are in stock for immediate shipment.
Product Parameter
Product Name:
U Grooved Quartz Glass Substrates
Material:
Silica glass
Silicon Content:
99.99%
Diameter:
1.0/1.1/1.2/1.3/1.4/1.5/1.6/1.7/1.8/1.9/2.0mm....
Tolerance of the diameter:
±0.03mm
Angle of the opening:
15-38°
Tolerance of the angle:
±5°
Length:
5-100mm
Tolerance of the length:
±0.2mm
Surface:
Transparent or frost
Application:
Fiber optic couplers
Stock:
Available
