Rectangular Glass Cuvette with Graded Seal
- Product Item : HYRD-704
- Category： Glass Cuvettes
- Material: ES quartz glass, IR quartz glass, Optical glass
- Dimension: Standard and custom
- Application: UV-visible spectrophotometers, fluorophotometers, biochemical analyzers, particle size analyzers
- Minimum order quantity: Not limited
Rectangular Glass Cuvette with Graded Seal Q704 I-704 G-704

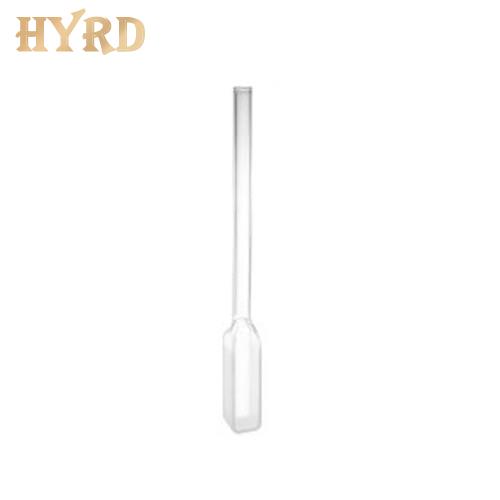

Slope welded rectangular cuvette with a long tube welded on top, which can be used for gas measurement.
Quartz glass cuvettes and optical glass cuvettes are key components of various UV-visible spectrophotometers, fluorophotometers, biochemical analyzers, particle size analyzers and other analytical instruments used in modern laboratories. We can provide more than 1000 kinds of cuvettes, which are applicable to optoelectronic and spectral analysis instruments, involving chemical, metallurgical, environmental protection, drug testing, medical, power plants, water plants, scientific research institutions and other analytical and experimental fields.

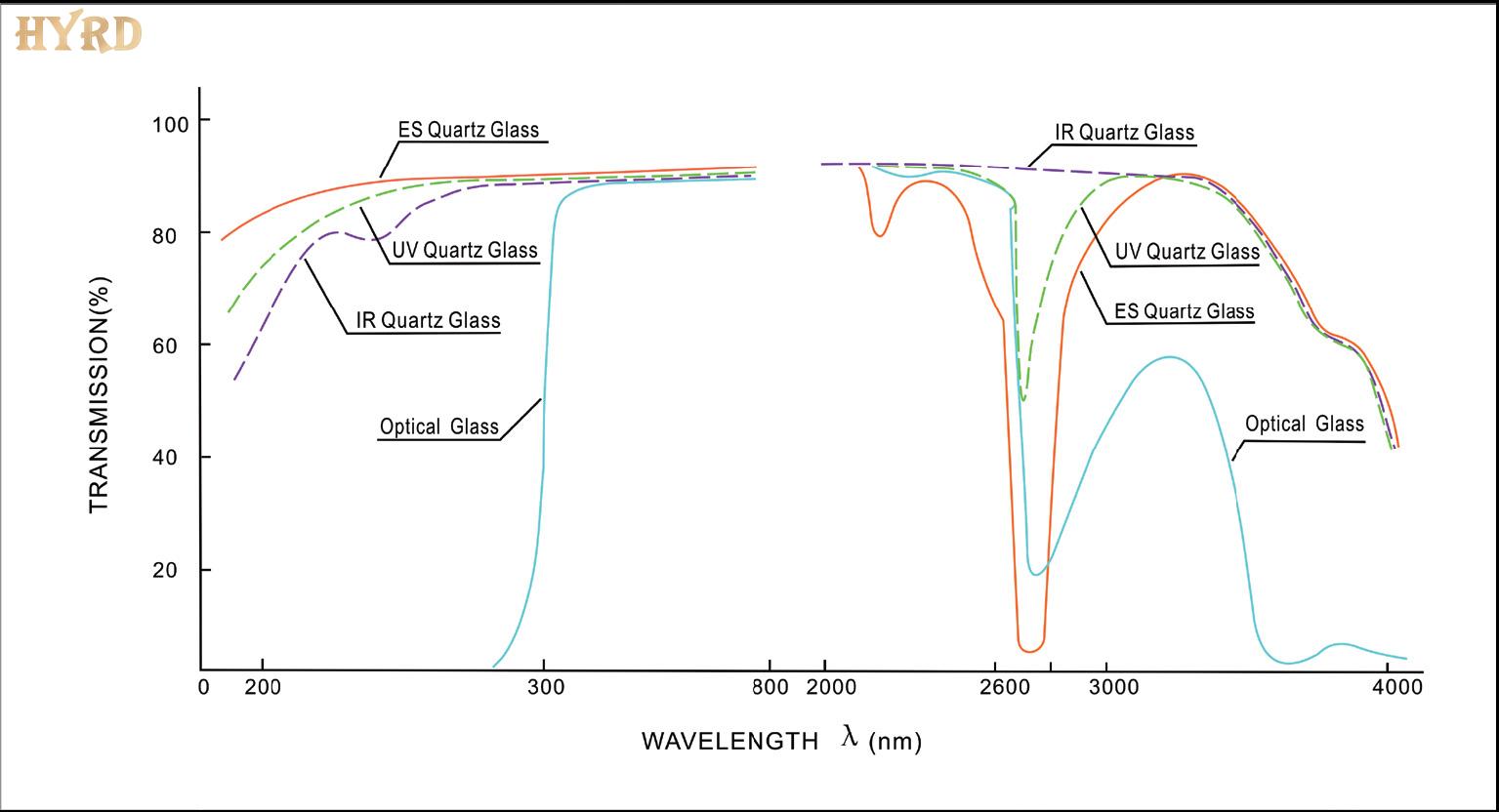

Transmission value curve
Transmission of empty cuvette: glass thickness 1.25mmx2
(including surface reflection loss)

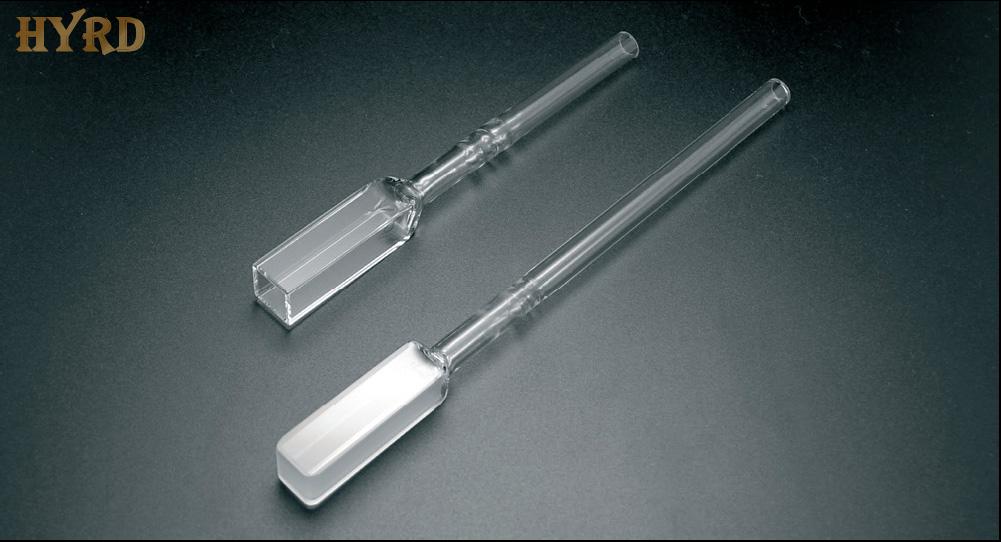

Slope welded rectangular cuvette with a long tube welded on top, which can be used for gas measurement.
Quartz glass cuvettes and optical glass cuvettes are key components of various UV-visible spectrophotometers, fluorophotometers, biochemical analyzers, particle size analyzers and other analytical instruments used in modern laboratories. We can provide more than 1000 kinds of cuvettes, which are applicable to optoelectronic and spectral analysis instruments, involving chemical, metallurgical, environmental protection, drug testing, medical, power plants, water plants, scientific research institutions and other analytical and experimental fields.
Product Specification
|
ES quartz glass (Wavelength: 190nm-2500nm) |
IR quartz glass (Wavelength: 250nm-3500nm) |
Optical glass (Wavelength:340nm-2500nm) |
Dimension (mm) |
Light Path Length (mm) |
Light Path Width (mm) |
Volume (ml) |
|
Q-704 |
I-704 |
G-704 |
45x12.5x12.5 OD of the tube: 8mm Total height: 120mm |
10 |
10 |
3.5 |
Guaranteed transmission value and pairing deviation value on an empty cuvette
|
Material |
Code |
Transmission of empty cuvette |
Pairing deviation value |
|
Optical glass |
G |
82%@350nm |
Max 0.5% @350nm |
|
Quartz glass |
H |
80%@220nm |
Max 0.5% @220nm |
|
ES quartz glass |
Q |
80%@200nm |
Max 0.5% @200nm |
|
IR quartz glass |
I |
88%@2730nm |
Max 0.5% @2730nm |
Transmission value curve
Transmission of empty cuvette: glass thickness 1.25mmx2
(including surface reflection loss)
