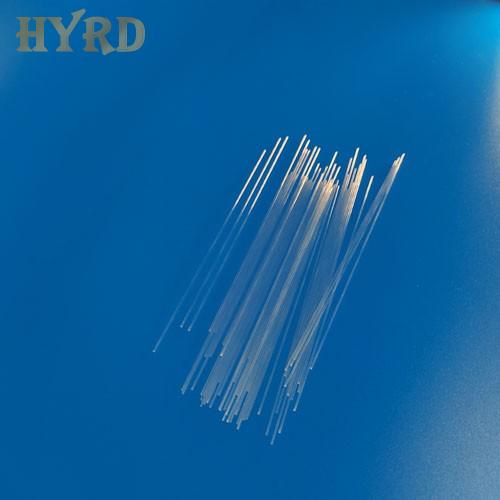

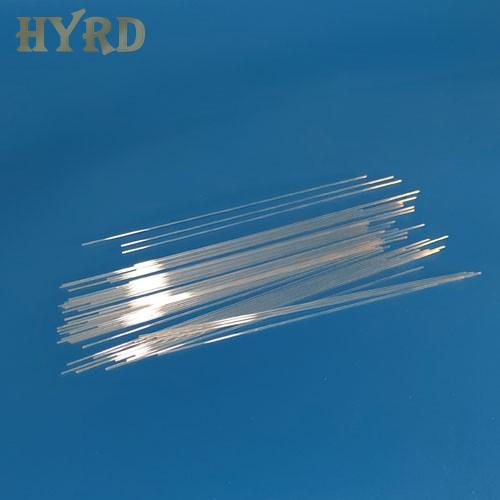

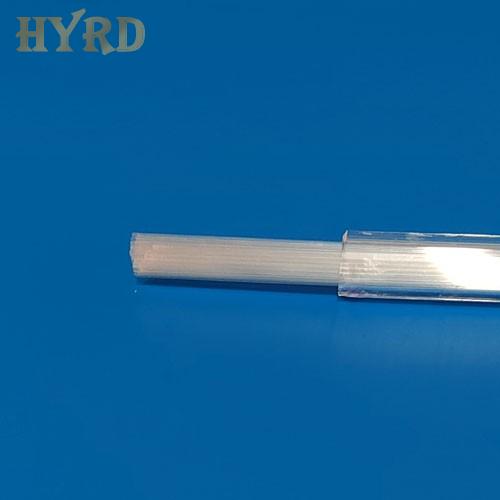

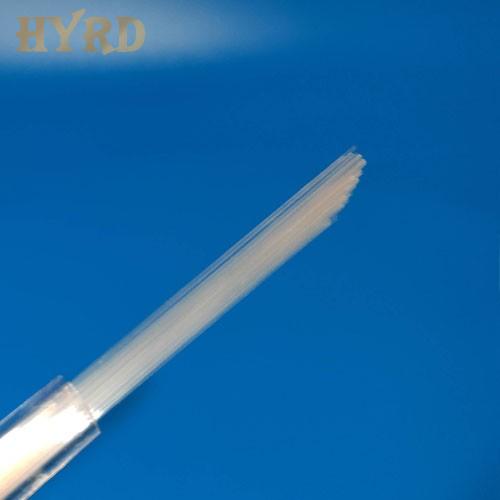

Fluorine Doped Capillary Tubes

Fluorine doped capillary tube
Fluorine doped capillary tube is a three-layer fluorine doped capillary with low internal refractive index and high external refractive index based on plasma chemical vapor deposition (PCVD) process and equipment.

Material
F-doped+SiO2

Applications
- High power beam combiner
- Photon Lantern

Features of Fluorine doped capillary
- Good optical performance
- Good size uniformity
- Good temperature resistance

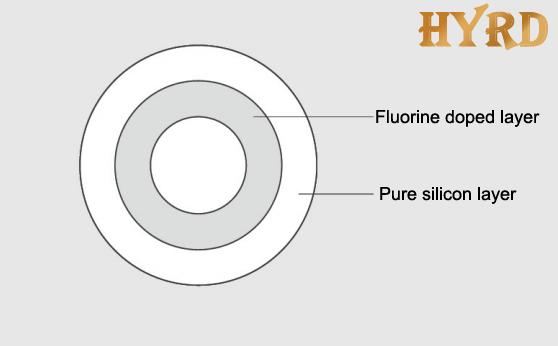

Structure of Fluorine doped capillary

Structure of Fluorine doped capillary tubes


Stock Sizes (mm)


Outer Diameter mm ±0.05mm Inner Diameter mm ±0.05mm
Length ±0.3mm Numerical aperture
1 0.75 0.4 150 0.20-0.22
2 0.95 0.75 150 0.20-0.22
3 1.1 0.85 150
0.20-0.22
4 1.5 0.8 150
0.20-0.22
5 1.5 1.2 150
0.20-0.22
6 1.7 1.2 150
0.20-0.22
