Quartz Tubes

HOME      PRODUCTS     Quartz Tubes       Highly Transparent Quartz Glass Tubes of


  • Highly Transparent Quartz Glass Tubes of Various Sizes
  • Highly Transparent Quartz Glass Tubes of Various Sizes
  • Highly Transparent Quartz Glass Tubes of Various Sizes
  • Highly Transparent Quartz Glass Tubes of Various Sizes
  • Highly Transparent Quartz Glass Tubes of Various Sizes
Highly Transparent Quartz Glass Tubes of Various SizesHighly Transparent Quartz Glass Tubes of Various SizesHighly Transparent Quartz Glass Tubes of Various SizesHighly Transparent Quartz Glass Tubes of Various SizesHighly Transparent Quartz Glass Tubes of Various Sizes

Highly Transparent Quartz Glass Tubes of Various Sizes

  • Product Item : HYRD-A002
  • Category: Quartz Tubes
  • Material: High Purity Fused Quartz (SiO2>99.99%)
  • Color: Transparent / Clear
  • MOQ: No limited
  • Dimension: Customized
  • INQUIRY   EMAIL

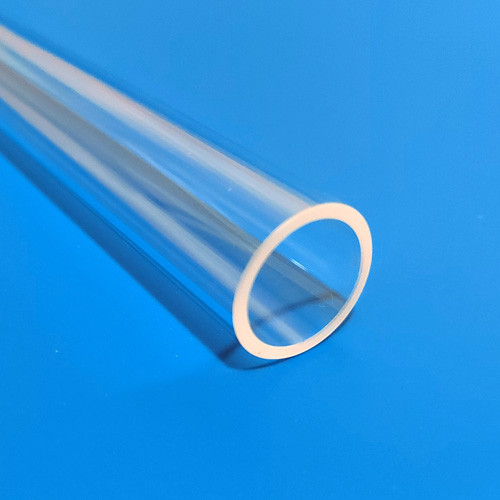

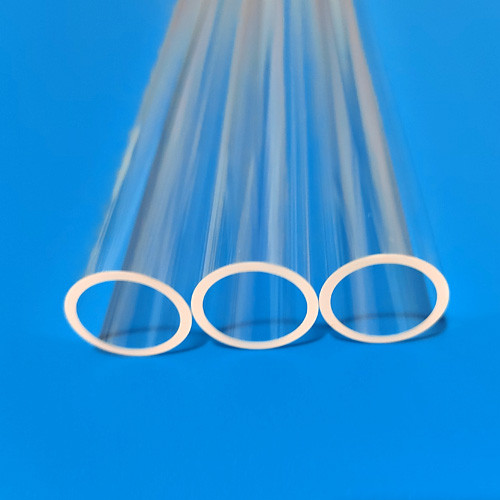

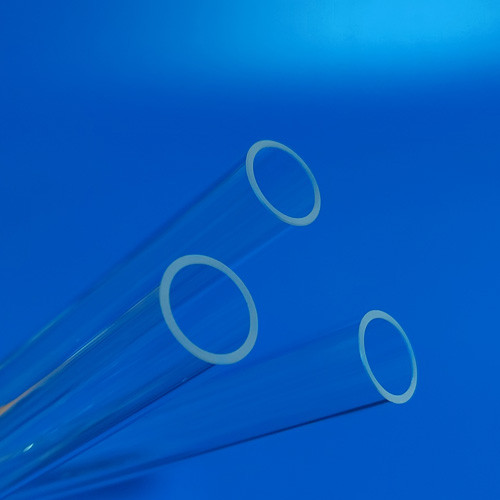

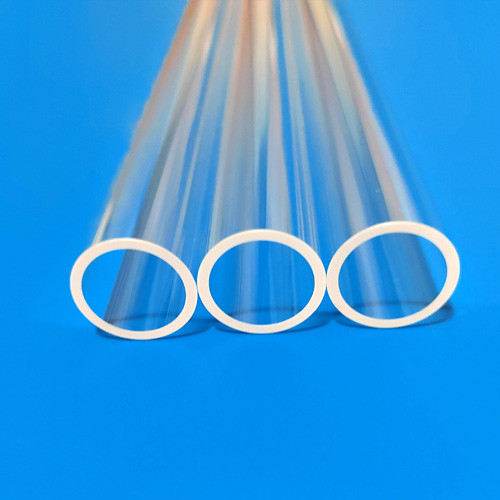

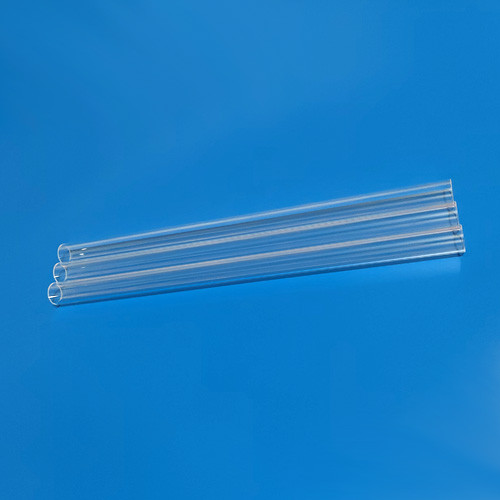

Highly Transparent Quartz Glass Tubes of Various Sizes
We supply transparent quartz glass tubes of various sizes. Many dimensions of the quartz tubes are in stock. Please contact us for more details.

Available Dimensions:

OD mm
Thickness mm
Length mm

OD mm
Thickness mm
Length mm

OD mm
Thickness mm
Length mm
60
2.5
1500

60
2
1500

13
1.5
1240
60
3
1500

48
3
1500

12.6
1
1530
56
3
1240

137
4
1240

35
2
1650
70
2
1240

137
7
1240

12
1
1670
49.5
2
1240

80
2
1240

25
3.5
1240
95
3.5
1380

80
3
1240

85
2.5
1600
75
3
1500

77.5
2.6
1240

22
3.5
1240
85
3
1600

40
2.5
1600

84
5
1640
96
3.5
1380

40
2.5
1240

85
5
1600
30
2.5
1180

57
2
1350

110
3.5
1500
70
2.5
1600

42
2.5
1240

100
2.5
1240
100
4.5
1500

83
2.5
1240

130
3
1240
40
3
1240

100
2.5
1240

140
5
1500
...
...
...

...
...
...

...
...
...

According to customers’ requirement, we can cut the tube to length, drill holes, weld flange, grind the end surface or do coating etc. Welcome to contact us for more details.


Properties of Quartz Glass
1. High temperature resistance. The softening point temperature of quartz glass is about 1730°C, it can be used for a long time at 1100℃, and the higher temperature can reach 1450℃ in a short time.
2. Corrosion resistance. Except for hydrofluoric acid, quartz glass hardly reacts with other acids. Its acid resistance is 30 times that of ceramics and 150 times that of stainless steel. Especially the chemical stability at high temperature is unmatched by any other engineering material.
3. Good light transmission performance. Quartz glass has good transmittance in the entire spectrum from ultraviolet to infrared, and the transmittance of visible light is above 93%, especially in the ultraviolet spectrum, the maximum transmittance can reach more than 80.
4. Good thermal stability. Quartz glass has a small thermal expansion coefficient and can withstand severe temperature changes. When the quartz glass is heated to about 1100 ℃, it will not burst when placed in normal temperature water.
5. Quartz glass has good electrical insulation properties. The resistance value of quartz glass is equivalent to 10,000 times that of ordinary glass. It is an excellent electrical insulating material with good electrical properties even at room temperature.

Because quartz glass has many of the above advantages, it is an indispensable excellent material in space technology, atomic energy industry, national defense equipment, automation system, semiconductor, metallurgy, chemical industry, electric light source, communication, light industry, building materials and other industries in modern cutting-edge technology.

Package
As our product is glass parts, which is fragile during transportation. We carefully do packing for each part. Optical paper, plastic foam, pearl cotton, plastic box etc, we try to protect parts by all means.

Logistics
For logistics, we support shipping by sea, air, or express. We help customer choose economic, safe and fast shipping method, which is suitable for customer requirements.

Quality Guarantee
Honesty and trust are the foundation of the business. We achieve customer satisfaction with high-quality products and services through excellent production and continuous improvement!
