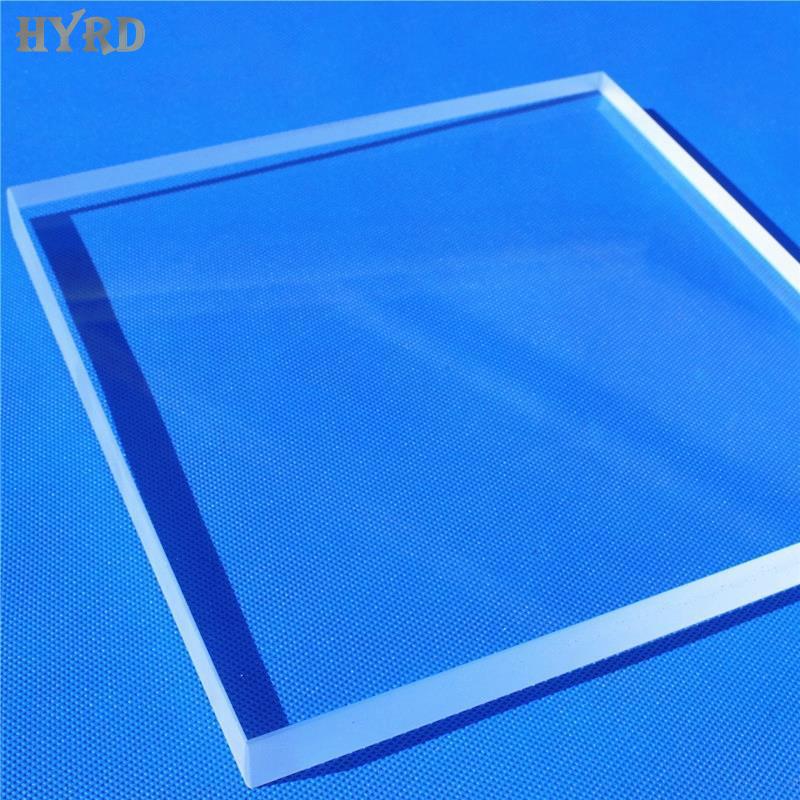

Large Size Silica Glass Quartz Sheet
- Product Item : HYRD-D014
- Category： Quartz Windows
- Material: Silica Glass
- Purity: 99.99%
- Mininum Order Quantity: one piece
- Origin: China
Large Size Silica Glass Quartz Sheet
We can custom produce large size silica glass quartz sheet according to customer's requirement.
Specification for Silica Glass Quartz Sheet:
|
Purity |
Silicon dioxide content greater than 99.99% |
|
Material |
JGS1, far ultraviolet quartz glass, photopermeability 180-2500nm. JGS2, ultraviolet quartz glass, photopermeability 220-2500nm. JGS3, infrared quartz glass, photopermeability 260-2500nm. |
|
Thermostability |
High temperature resistance 1200℃. |
|
Transparency |
>90% |
|
Edging |
Do edge sharpening to ensure no burrs on the edges. |
|
Surface |
No scratches, spots, white spots, cracks, edges missing angles on surface. |
|
Surface type |
Roughness, parallelism, flatness and finish can be customized as required. |
|
Processing ability |
Diameter / width: 0.2-1200mm, thickness 0.1-300mm. |
