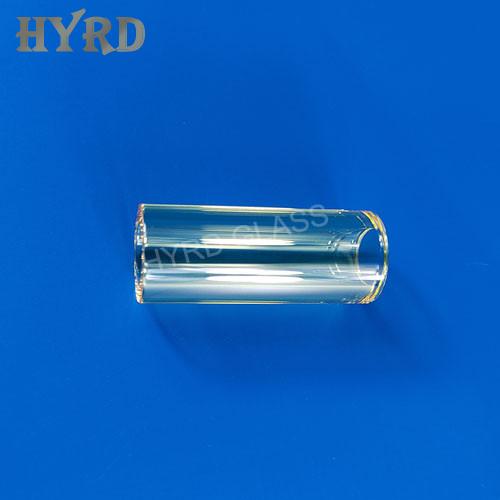

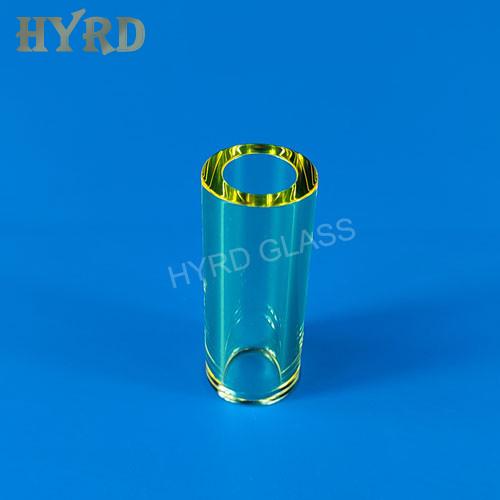

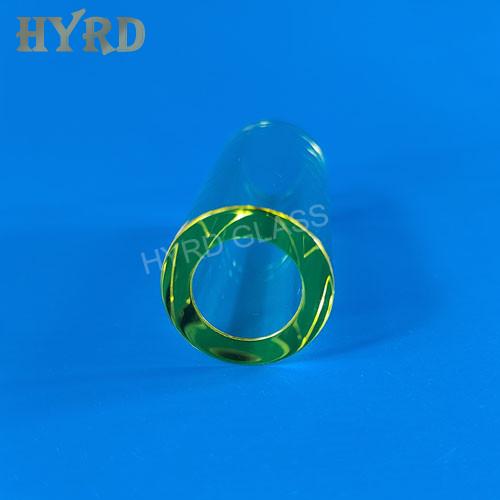

S7010N 10% Doping of Samarium Oxide Glass Laser Cavity Flow Tubes

S7010N 10% Doping of Samarium Oxide Glass Laser Cavity Flow Tubes
The 10% Doping of Samarium Oxide Glass Laser Cavity Flow Tube can absorb ultraviolet light generated by krypton lamps, as well as 1064nm near-infrared light. It can effectively improve the reliability, lifespan, and laser radiation efficiency of laser components.

Product Specification

Material
10% Doping of Samarium Oxide Glass
Surface
Polished
Color
Light yellow
Diameter
23mm
Wall thickness
4.5mm
Length
58mm
Tolerance
±0.05mm
Process
Chemical hardening

Material Properties

Expansion coefficient
10.4 x 10-6/K (room temperature~300 ℃)
Refractive index
ND=1.5755
Softening point
526 ℃
Annealing point
470 ℃

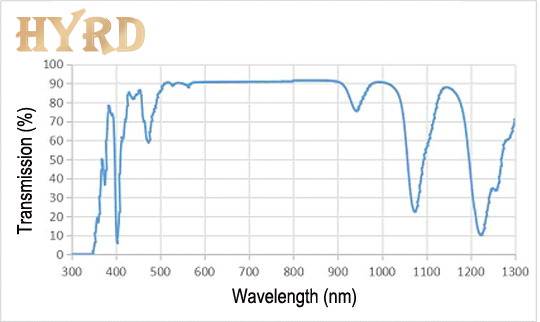

Spectrum of 10% Doping of Samarium Oxide Glass
