Corning 7980 Double Bore Quartz Flow Tubes

  • Product Item : HYRD-B028
  • Category: Quartz Flow tubes
  • Material: Corning 7980 HPFS
  • Dimension tolerance: ±0.05mm
  • Process: Machining polishing
  • Finish SD: 60/40
  • INQUIRY   EMAIL

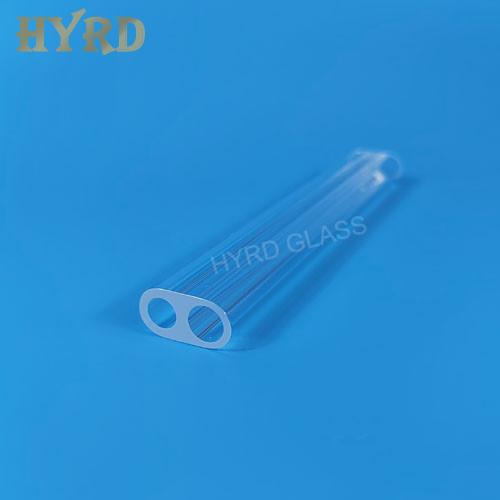

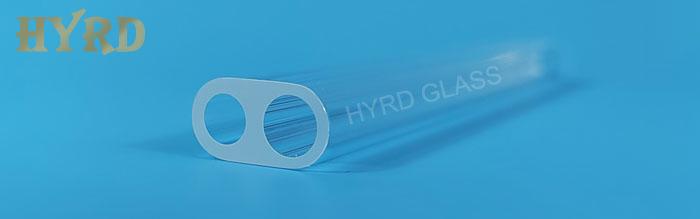

Corning 7980 Double Bore Quartz Flow Tubes

The double bore quartz flow tube is used in laser head, with one hole for lamp and one hole for crystal rod. Corning 7980 is high purity fused silica glass, which is high transparent for better  transmission. The double bore quartz flow tube is ultra clear, with good machining polishing, good dimension accuracy for better fitting with laser head. It is an ideal glass component for laser system.
Corning 7980 Double Bore Quartz Flow Tubes

Product Parameter

Product name:
Double Bore Quartz Flow Tubes
Material:
Corning 7980 HPFS
Dimension tolerance:
±0.05mm
Process:
Machining polishing
Color:
Transparent
Finish SD:
60/40
Mohs hardness:
5.5-6.5
Deformation point:
1120℃
Softening point:
1680℃
Annealing point:
1210℃

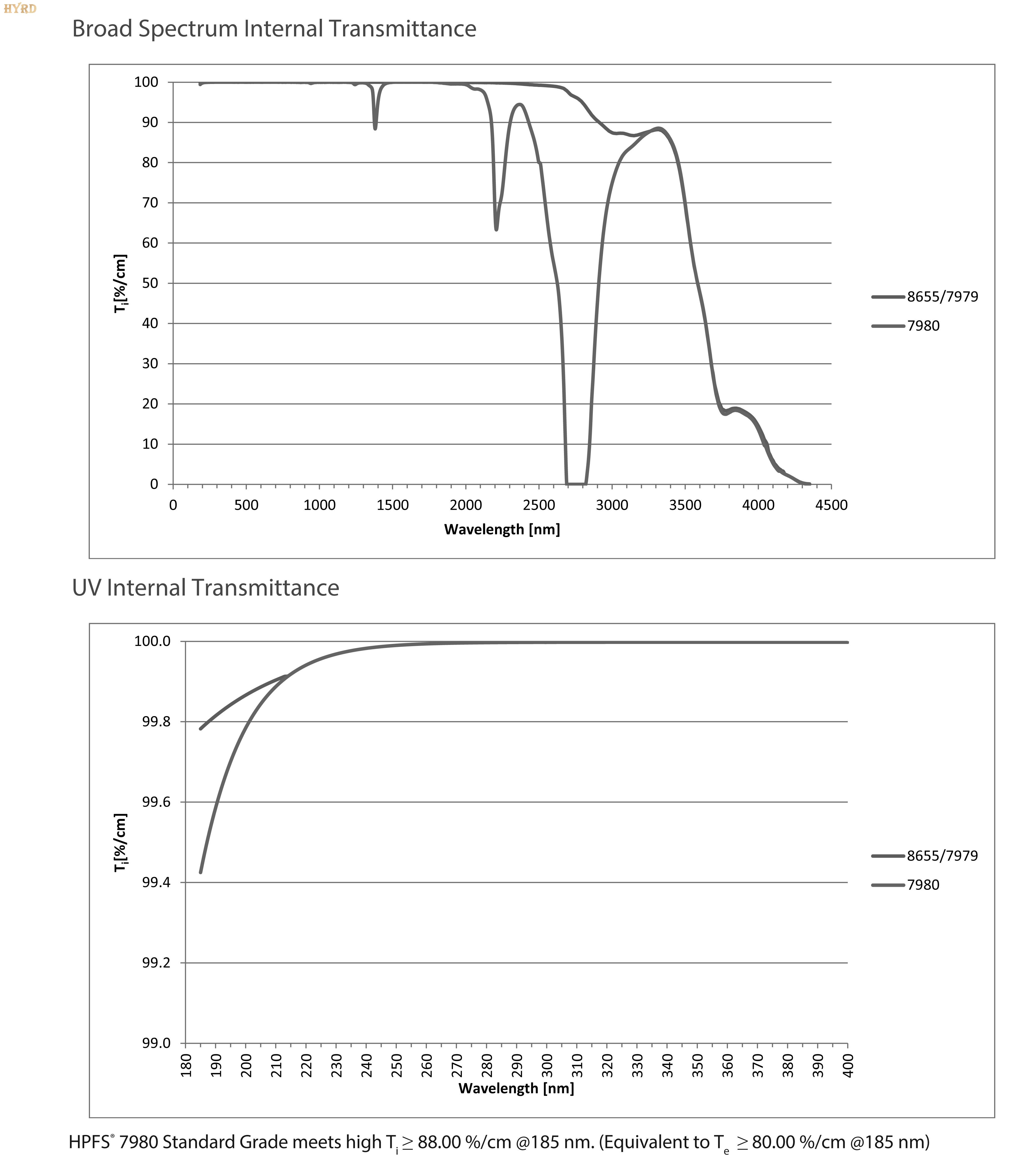

Spectrum of Corning 7980 HPFS

Spectrum of Corning 7980 HPFS
