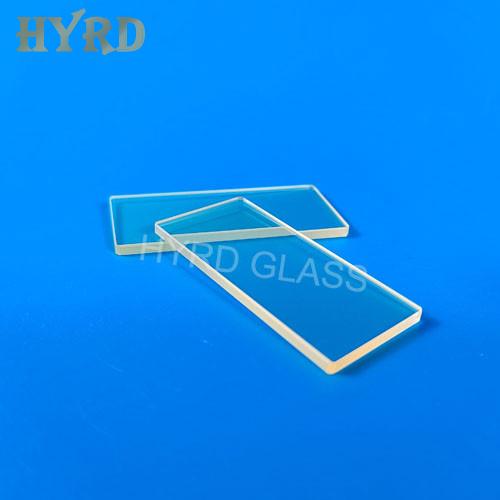

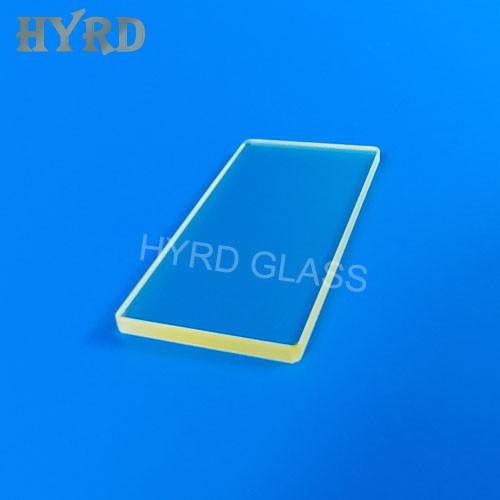

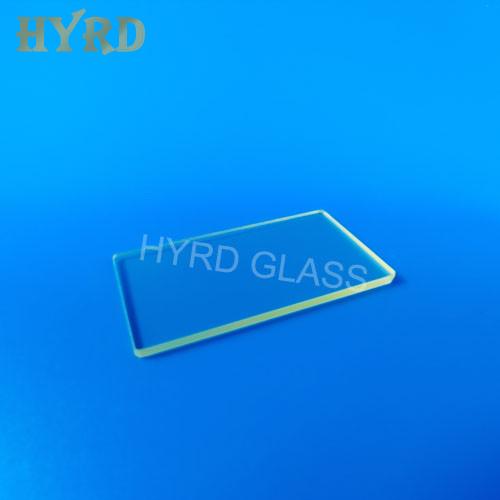

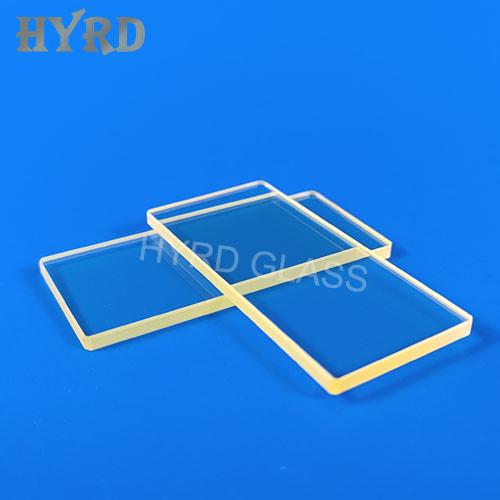

Samarium Oxide Sm2O3 Doped Glass Flow Plates
- Product Item : HYRD-D029
- Category： Laser Flow Tubes & Flow Plates
- Material: Samarium Oxide Sm2O3 Doped Glass
- Surface: Clear / transparent
- Surface quality: 60/40
- Application: Laser Optics
Samarium Oxide Sm2O3 Doped Glass Flow Plates
The glass material is doped by samarium oxide and cerium, which can absorb ultraviolet light generated by krypton lamps, as well as 1064nm near-infrared light. It can effectively improve the reliability, lifespan, and laser radiation efficiency of laser components.
Product Parameters
|
Material |
10% Samarium Doped Glass |
|
Color |
Light yellow |
|
Surface |
Clear / transparent |
|
Surface quality |
60/40 |
|
Dimension tolerance |
±0.05mm |
|
Process |
Optical polishing |
|
Strengthening |
Yes |
|
Application |
Laser Optics |
Material Properties
|
Expansion coefficient |
10.4 x 10-6/K (room temperature~300℃) |
|
Refractive index |
ND=1.5755 |
|
Softening point |
526 ℃ |
|
Annealing point |
470 ℃ |
Transmittance curve (thickness 3mm)
