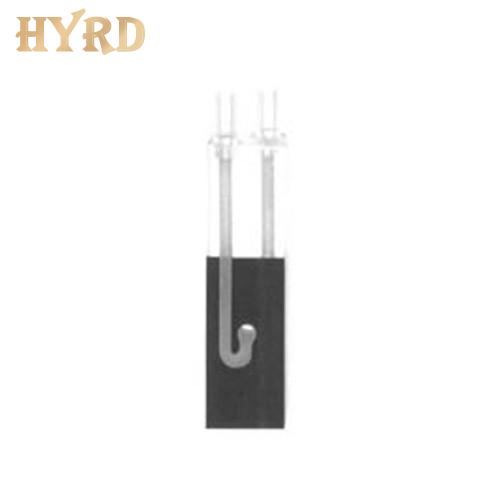

Self Masking Continuous Flow Through Cell Flow Cuvette Glass Cuvettes
- Product Item : HYRD-C60
- Category： Glass Cuvettes
- Material: ES quartz glass, IR quartz glass, Optical glass
- Dimension: Standard and custom
- Application: UV-visible spectrophotometers, fluorophotometers, biochemical analyzers, particle size analyzers
- Minimum order quantity: Not limited
Self Masking Continuous Flow Through Cell Flow Cuvette Glass Cuvettes

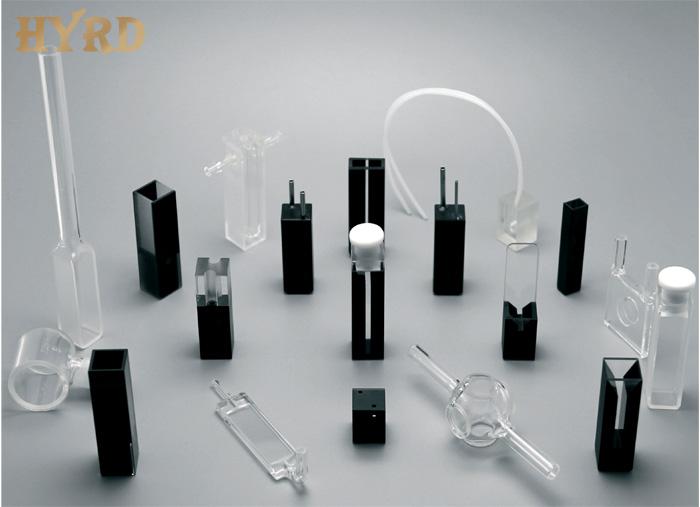

Quartz glass cuvettes and optical glass cuvettes are key components of various UV-visible spectrophotometers, fluorophotometers, biochemical analyzers, particle size analyzers and other analytical instruments used in modern laboratories. We can provide more than 1000 kinds of cuvettes, which are applicable to optoelectronic and spectral analysis instruments, involving chemical, metallurgical, environmental protection, drug testing, medical, power plants, water plants, scientific research institutions and other analytical and experimental fields.
Product Specification
|
ES quartz glass (Wavelength: 190nm-2500nm) |
IR quartz glass (Wavelength: 250nm-3500nm) |
Optical glass (Wavelength:340nm-2500nm) |
Dimension (mm) |
Light Path Length (mm) |
Light Path Width (mm) |
Volume (ml) |
|
Q-63 |
I-63 |
G-63 |
45x12.5x7.5 |
5 |
¢3 |
0.035 |
|
Q-64 |
I-64 |
G-64 |
45x12.5x12.5 |
10 |
¢3 |
0.07 |
|
Q-65 |
I-65 |
G-65 |
45x12.5x22.5 |
20 |
¢3 |
0.14 |
|
Q-66 |
I-66 |
G-66 |
45x12.5x32.5 |
30 |
¢3 |
0.21 |
|
Q-67 |
I-67 |
G-67 |
45x12.5x7.5 |
5 |
¢2 0.015 |
|
|
Q-68 |
I-68 |
G-68 |
45x12.5x12.5 |
10 |
¢2 |
0.03 |
|
Q-69 |
I-69 |
G-69 |
45x12.5x22.5 |
20 |
¢2 |
0.06 |
|
Q-70 |
I-70 |
G-70 |
45x12.5x12.5 |
10 |
¢1.5 |
0.018 |
