HOME PRODUCTS Quartz Tubes Heavy Walled Quartz Level Tube | Quartz
Inner semi-circular quartz glass dual color water level tube |
||||
Outer diameter |
Inner semi-circular |
Length |
Ellipticity of outer circle |
Working pressure (kgf/Cm2) |
φ26±0.2mm / φ29±0.2mm |
Φ10.5±1
R60 |
260-460±1 |
0.3 |
25-64 |

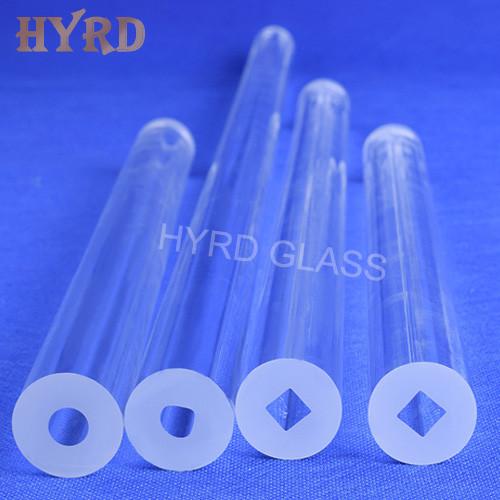

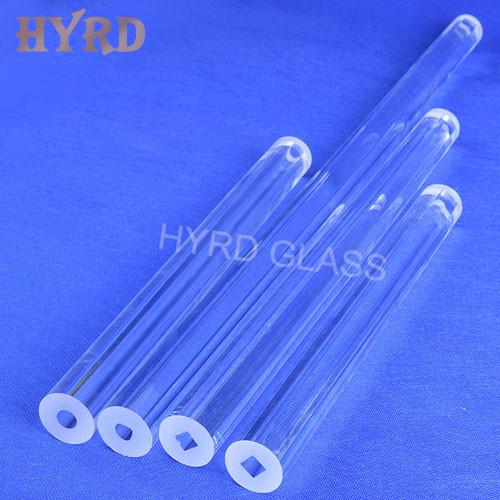

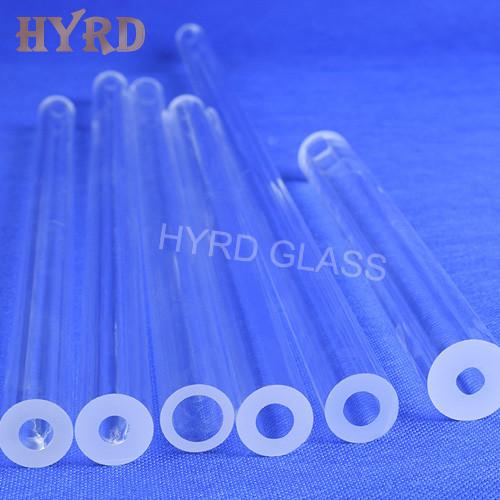

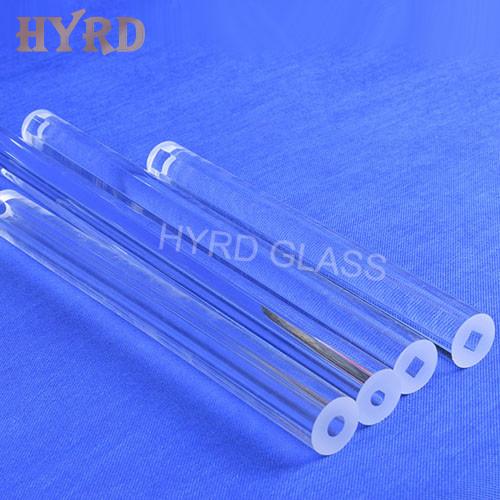

Product |
Shape of inner bore |
Outer diameter mm |
Inner diameter |
Length |
Working pressure MPa |
Drawing |
Monochromatic liquid level tube |
Round |
Φ24 |
Φ6-Φ10 |
260-1700 |
≤2.5 |
|
Round |
Φ40 |
Φ27-Φ30 |
260-1700 |
≤2.5 |
|
|
Dual color liquid level tube |
Triangle (Isosceles triangle) |
Φ29 |
7.5-9.2 (Right angle side length) |
260-1700 |
≤2.5 |
|
Square |
Φ24 |
9±1
(Side length) |
260-1700 |
≤2.5 |
|
|
Fan shaped (right angle) |
Φ24 |
9
(Right angle side length) |
260-1700 |
≤2.5 |
|
