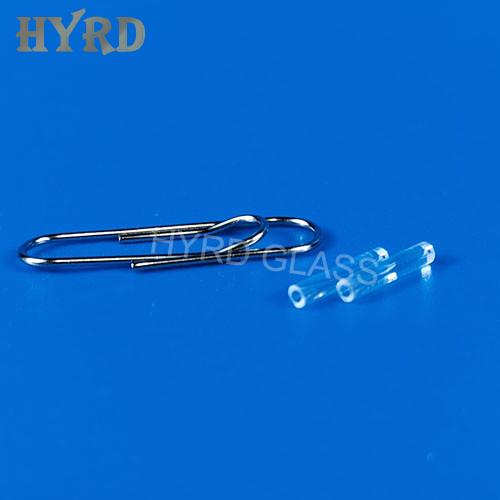

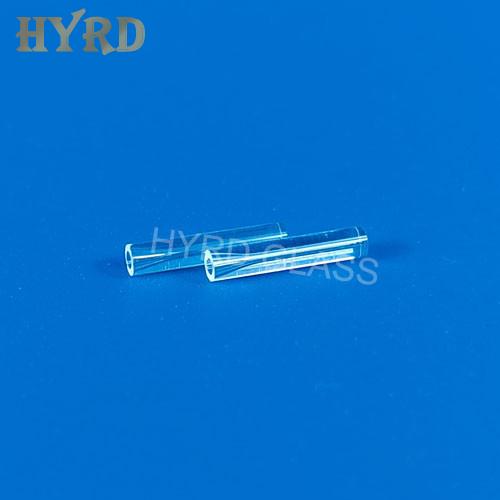

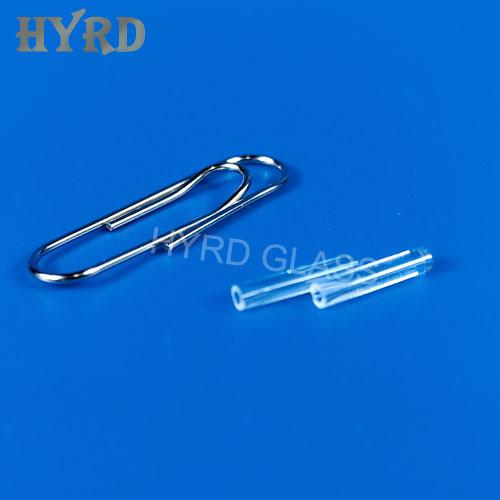

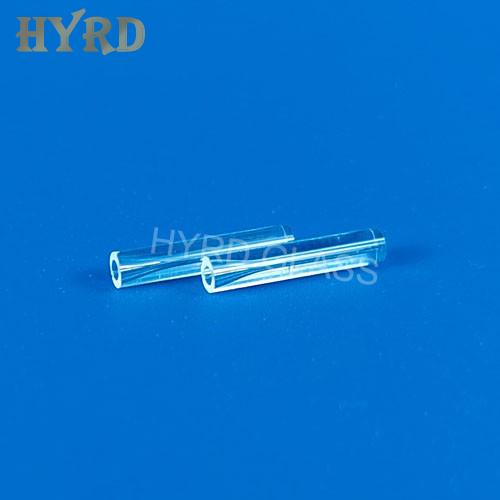

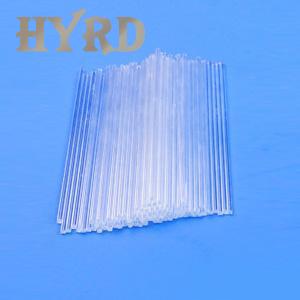

High Precision Borosilicate Glass Tubes For Optical Fiber
- Product Item : HYRD-M019
- Category： Glass Capillaries
- Material: Borosilicate glass
- Silicon content: over 80%
- ID: 0.125mm, 0.126mm, 0.127mm
- Tolerance: ±0.01mm
High Precision Borosilicate Glass Tubes For Optical Fiber
The high precision borosilicate glass tube is used as fiber optic ferrules and alignment sleeves.Product Specification
Material
Borosilicate glass
Silicon content
over 80%
OD (mm)
0.1-5mm
ID
0.125mm, 0.126mm, 0.127mm
Tolerance
±0.01mm
Length
5-30mm
Surface
Smooth
Color
Transparent
Taper inlet
Optional
Process
Thermal drawn
Product Application
▪ Fiber pigtail, collimator, combiners, CWDM, DWDM▪ Optical fiber sleeves, optical communication packaging sleeve
▪ Fiber fusion cone
Material Properties
Material
Borosilicate glass
Density (20℃)
2.23g/cm3
Hardness
7 Class
Long-Term Use Temperature
450°
Maximum Working Temperature/Short-Term Use Temperature
500°C
Refractive index
1.47
Light transmittance (2mm)
92
Chemical Composition
Composition
SiO2
B2O3
Al2O3
Na2O+K2O
Percentage
80.4%
12.7%
2.4%
4.2%
