Fluorine-doped Synthetic Silica Tubes Used for Precision Glass Processing
- Product Item : HYRD-M026
- Category： Glass Capillaries
- Material:Fluorine-Doped Synthetic Silica
- Dimension: Standard or Customized
- Surface: Polished /Transparent
- Minimum Order Quantity: Negotiable
Fluorine-doped Synthetic Silica Tubes Used for Precision Glass Processing
Fluorine-doped Synthetic Silica Tube is a special quartz tube product designed and developed specifically for laser fiber applications. The preparation of this series of fluorine doped quartz tubes adopts the chemical vapor deposition process inside the tube, which has the advantages of high fluorine concentration, low hydroxyl content, and good geometric uniformity. The series of fluorine-doped products is widely used as cladding material for laser fiber pump.Product Specification
Typical numerical aperture
/
0.06~0.24
Outer diameter of fluorine doped tube
mm
35.5 ± 0.5
Inner diameter of fluorine doped tube
mm
27.5 ± 0.5
Thickness of fluorine doped layer
mm
2.0 ± 0.2
Length of fluorine doped tube
mm
800 ± 50
Roundness of fluorine doped tube
/
≤ 1.0%
● High fluoride concentration
● Good geometric uniformity
● Low hydroxyl content
Product Application
● Laser fiber cladding material
● Fluorine doped capillary tube
● Biomedical

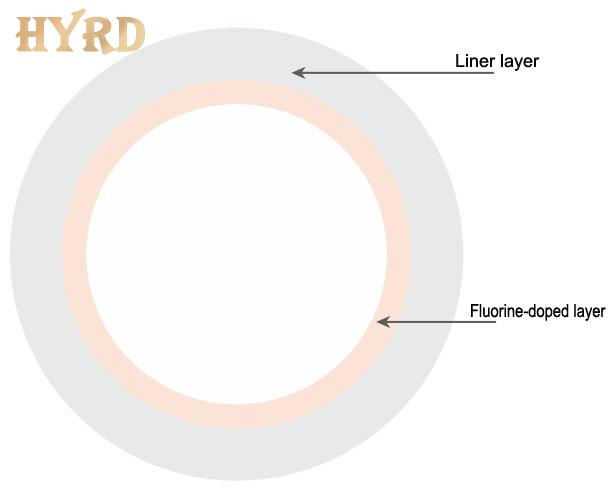

Structure
Custom Information
● Fluorine doped tubes with special numerical apertures can be customized
● Fluorine doped layer thickness can be customized
● Fluorine doped quartz rods with different sizes and numerical apertures can be customized
● Fluorine doped capillary tube drawing services is available
