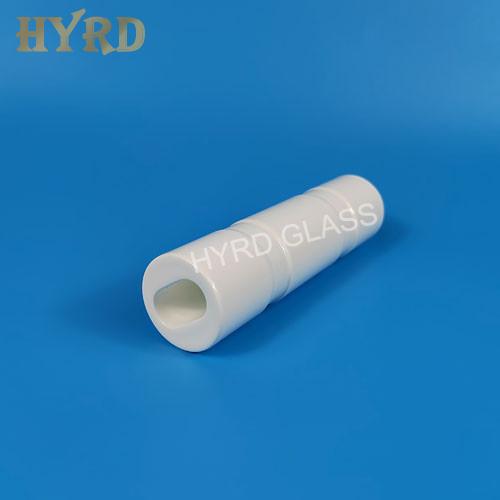

Ceramic Laser Reflector TCT117

Ceramic Laser Reflector TCT117

The Ceramic Laser Reflectors are used in laser head of solid state and CO2 laser systems. It can be integrally formed or a combination of two pieces.


Product Parameters

Product Name:
Ceramic Laser Reflectors TCT117
Part No.
BAB-33
Color
White
Material
Alumina ceramic
Purity
99%
Surface
Glazed
Density
3.1g/cm3
Porosity
22%
Bending strength
170MPa
Tolerance
0.5mm

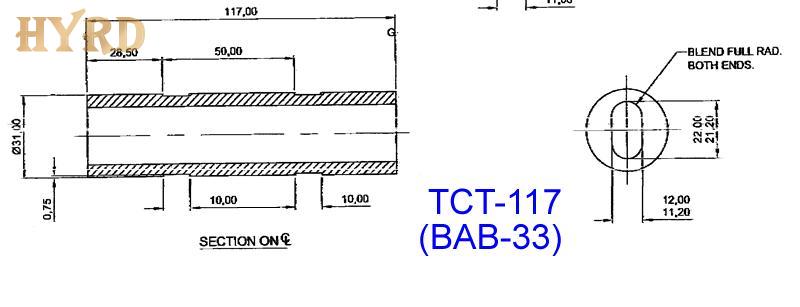

Drawing of TCT117

Drawing of TCT117


Product Features

1) Fully glazed surface for maximum reflectivity and easy cleaning
2) Reflectivity reaches 97% at wavelengths of 600-1000nm
3) Reflectivity exceeding 95% within the wavelength range of 380-1100nm
4) The green body has appropriate porosity and high strength characteristics
5) The diffuse reflectance scatters light and consequently reduces hot spots in the pumped medium.
