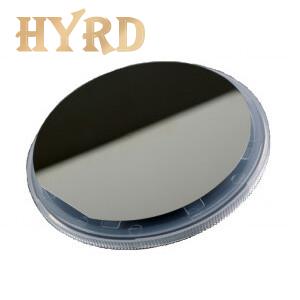

1550 nm FP Laser Diode Epi-Wafer
- Product Item : HYRD-W006
- Category： Wafers
- Wavelength:1550 nm
- Slope efficiency:0.22 W/A per facet
- Serial resistance: ＜20Ω
- Operating temperature: -20℃ ~ +65℃
1550 nm FP Laser Diode Epi-Wafer
The 1550 nm Fabry-Perot (FP) laser diode (LD) epi-wafer, designed especially for the high-speed fiber-optic communications, is grown by metal-organic chemical vapor deposition (MOCVD) by HYRD, with strained InAlGaAs or InGaAsP multiple quantum wells (MQWs) as the active layer.
EPITAXY STRUCTURE
p+-InGaAs Contact
p-InP Cladding
Waveguide
MQW
Waveguide
n-InP Cladding
n-InP Buffer
n-InP Substrate
WAFER CHARACTERIZATION

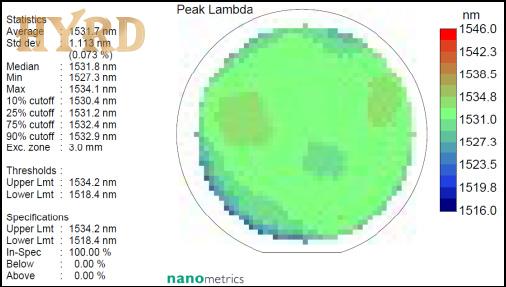

Photoluminescence (PL) of 2-inch epi-wafer

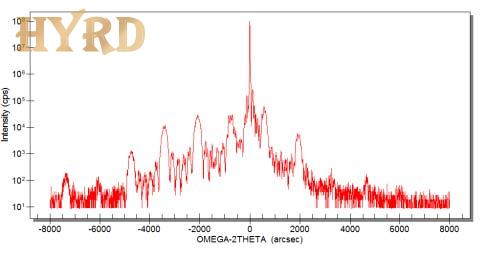

X-ray diffraction (XRD) of 2-inch epi-wafer
TYPICAL EPITAXY PARAMETERS
Parameters
Typical Values
Thickness control
<±5%
Thickness uniformity
<±3%
PL wavelength uniformity
<±5 nm for 2-inch epiwafer
Doping control
<±30%
p-InP carrier concentration
1E17 cm-3 ~ 2E18 cm-3
n-InP carrier concentration
1E16 cm-3 ~ 5E18 cm-3
p-InGaAs carrier concentration
1E19 cm-3 ~ 2E19 cm-3
Parameters
Typical Values
Threshold current@25℃
＜12mA
Wavelength
1550 nm
Slope efficiency
0.22 W/A per facet
Serial resistance
＜20Ω
Operating temperature
-20℃ ~ +65℃
Ridge waveguide
2 μm x 250 μm, as cleaved
⚫ MOCVD Epitaxy.
⚫ 2/3/4 Inch.
⚫ High Uniformity & Reliability.
APPLICATIONS
⚫ Telecommunications
Our company can provide compound semiconductor optoelectronic epitaxial wafers, mainly based on advanced semiconductor technology to prepare optoelectronic epitaxial wafers with different structures and functions using indium phosphide (InP) and gallium arsenide (GaAs) as substrates, widely used in fields such as communication and medical aesthetics.
