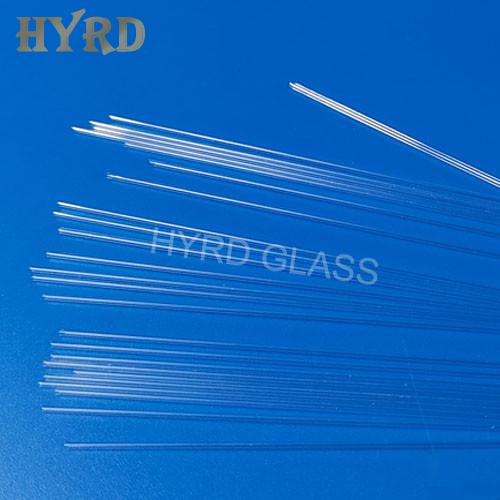

Partially Fluorine-Doped Fused Silica Capillary Tubes
- Product Item : HYRD-M024
- Category： Glass Capillaries
- Material: Partially Fluorine-Doped Synthetic Silica
- Tolerance: High Precision
- Surface: Polished /Transparent
- Application: High power beam combiner & Photon lantern
Partially Fluorine-Doped Fused Silica Capillary Tubes
High precision partially fluorine doped fused silica capillary tube with good geometric dimension control, length, wall thickness, fluorine doped thickness, and inner and outer diameter ratio can be customized. It can meet various applications in optics, medicine, and electronics.Product Features
● High precision control of geometric dimensions
● Good batch consistency
● Fluorine concentration can be customized
● Fully fluorine-doped tube can be customized
● Length can be customized
Stock Size (μm)
Sr. No.
Outer diameter μm
Inner diameter μm
Fluorine doped layer diameter/inner diameter ratio
NA
HYRD 300/900
300±20
900±30
＞1.1
0.22±0.02
HYRD 200/760
200±20
760±30
＞1.1
0.22±0.02
HYRD 850/1150
850±30
1150±30
＞1.1
0.22±0.02
HYRD 800/1500
800±30
1500±30
＞1.1
0.22±0.02
HYRD 500/1500
500±30
1500±30
＞1.1
0.22±0.02
HYRD 1000/1250
1000±30
1250±30
＞1.1
0.22±0.02
