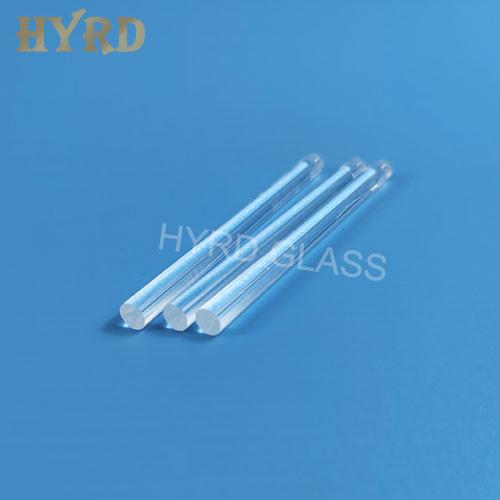

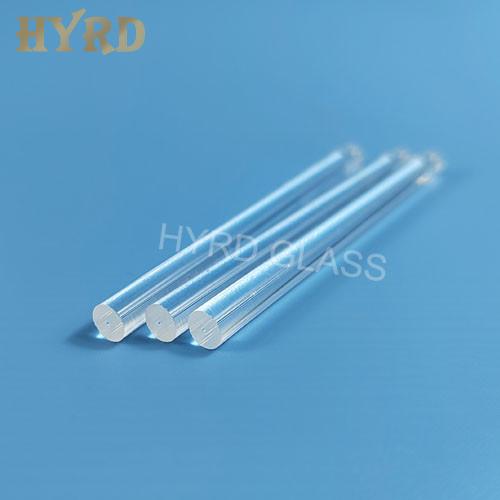

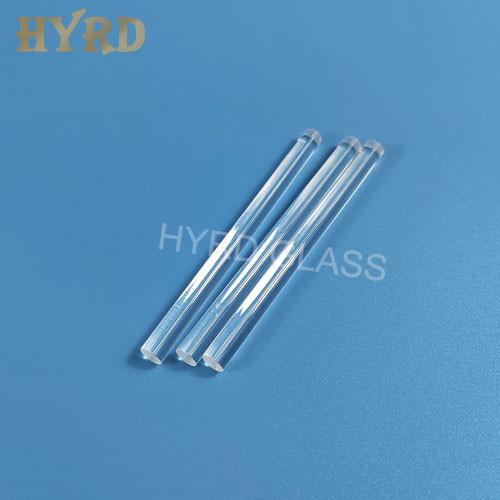

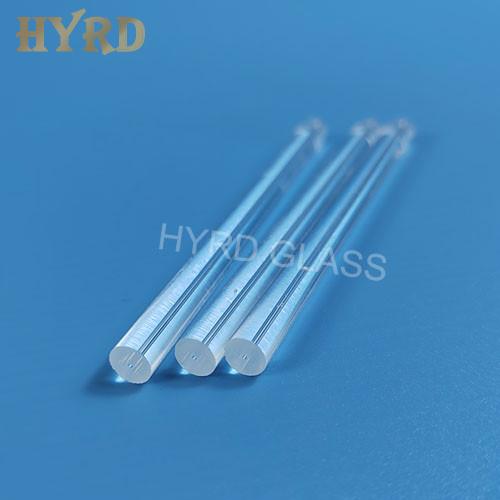

Heavy Wall Quartz Capillary Tubes
- Product Item : HYRD-A012
- Category： Glass Capillaries
- Material: Fused quartz
- Feature: Heavy wall
- Tolerance: ±0.05mm or higher
- Application: Flow cell
Heavy Wall Quartz Capillary Tubes
The heavy wall quartz capillary tubes is made of high purity silicon glass, formed by thermal drawing by drawing tower. Dimension is well controlled. We can custom produce all dimensions of quartz capillary tubes.
Product Parameters
|
Parameters |
Heavy Wall Quartz Capillary Tubes |
|
OD (mm) |
0.1≤ |
|
Tolerance of OD & ID (mm) |
±0.05 or better |
|
OD / ID ratio |
1.1 to 15 |
|
Length (mm) |
50 to 1300 |
|
Available material |
Silicon glass, borosilicate glass, Corning 7979 IR grade fused silica, Corning 7980 fused silica, other required material. |
|
Shape |
Round, Square, Triangle, Rectangular, other shapes. |
Product Features
• Accurate geometric indicators and good batch consistency
• High purity quartz material, high temperature resistance, corrosion resistance, high transparency, and good electrical insulation
• Hardness=Mohs 7, low coefficient of thermal expansion
• Many possible materials
• Custom dimensions tailored to your application
Product Applications:
• Combiners, Fiber pigtail, collimator, CWDM, CCWDM, DWDM collimator, CWDM, CCWDM DWDM
• Biophotonics
• Optical communication packaging sleeve/Optical Fiber Sleeves, all glass structured optical device
• Laser medical glass tube
• Fiber Fusion Cone
Welcome to contact us for more information!
