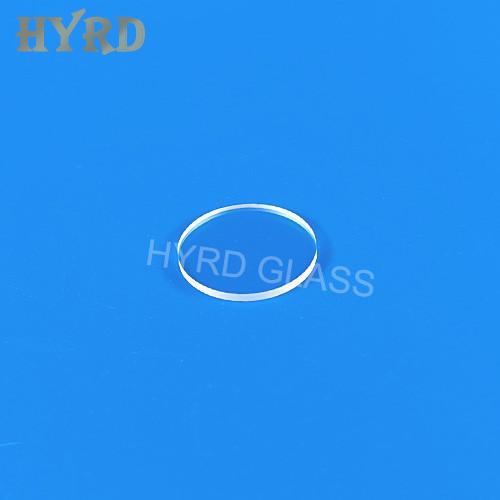

Fused Silica Lens Diameter 12.7mm Thickness 1.27mm AR/AR 755 & 1064nm
- Product Item : HYRD-D018
- Category： Quartz Windows
- Material: Fused silica
- Dimension: D12.7mm T1.27mm
- Film: AR/AR 755nm & 1064nm
- Minimum Order Quantity: Negotiable
Fused Silica Lens Diameter 12.7mm Thickness 1.27mm AR/AR 755 & 1064nm
Product Parameters
Material: fused silica
0.5”x0.05” AR/AR 1064 & 755nm
Dimension: diameter (φ12.7mm) , thickness (1.27mm),
Film coating: AR/AR coated for 755 & 1064nm
Reflectance spec. on AR coating : the minimum reflection is preferable ≤1-2%.
Surface spec. : windows – flat surface – without any curve.
Scratch & Dig spec. : the main concern is the durability and higher energy the windows can tolerate.
Fluence: 30 J/cm2 @ 755nm, 300 J/cm2 @ 1064nm
Repetition rate of the laser: 2.5-3Hz.
Laser working at long pulse mode.
Package
As our product is glass parts, which is fragile during transportation. We carefully do packing for each part. Optical paper, plastic foam, pearl cotton, plastic box etc, we try to protect parts by all means.
Logistics
For logistics, we support shipping by sea, air, or express. We help customer choose economic, safe and fast shipping method, which is suitable for customer requirements.
