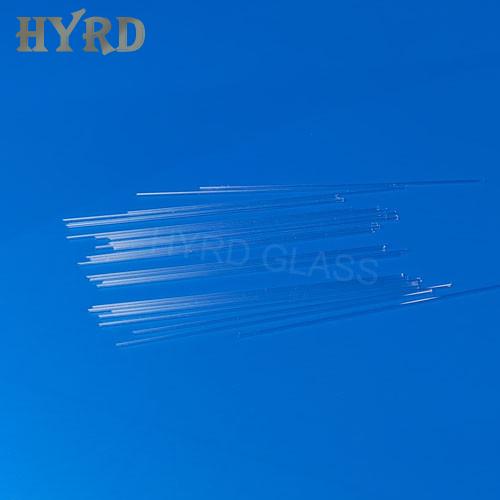

Fluorine-Doped Synthetic Silica Capillary Tubes φ0.95/0.75mm
- Product Item : HYRD-M022
- Category： Glass Capillaries
- Material:Fluorine-Doped Synthetic Silica
- Outer diameter: 0.95mm
- Inner diameter: 0.75mm
- Application: High power beam combiner & Photon lantern
Fluorine-Doped Synthetic Silica Capillary Tubes φ0.95/0.75mm
Fluorine-Doped Synthetic Silica Capillary Tubes is a quartz tube that is doped with fluorine through plasma chemical vapor deposition (PCVD) process, achieving a multi-layer structure with low internal refractive index and high external refractive index, and processed through multiple processes. It is suitable for medium to high power beam combiners and photon lanterns.Material
F-doped+SiO2
Applications
- High power beam combiner
- Photon Lantern
Features of Fluorine doped capillary
- Good optical performance
- Good size uniformity
- Good temperature resistance

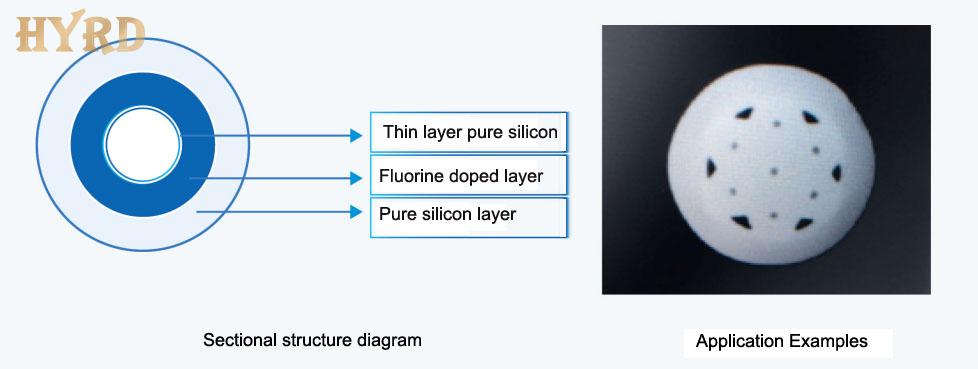

Structure of Fluorine doped capillary
Stock Sizes (mm)
| Sr. No. | Outer Diameter mm ±0.05mm |
Inner Diameter mm ±0.05mm |
Length ±0.3mm | Numerical aperture |
| 1 | 0.75 | 0.4 | 150 | 0.20-0.22 |
| 2 | 0.95 | 0.75 | 150 |
0.20-0.22 |
| 3 | 1.1 | 0.85 |
150 |
0.20-0.22 |
| 4 | 1.5 | 0.8 |
150 |
0.20-0.22 |
| 5 | 1.5 | 1.2 |
150 |
0.20-0.22 |
| 6 | 1.7 | 1.2 |
150 |
0.20-0.22 |
